SERVICE CHANNELS

Secure protection of floor-laid cables and service utilities.

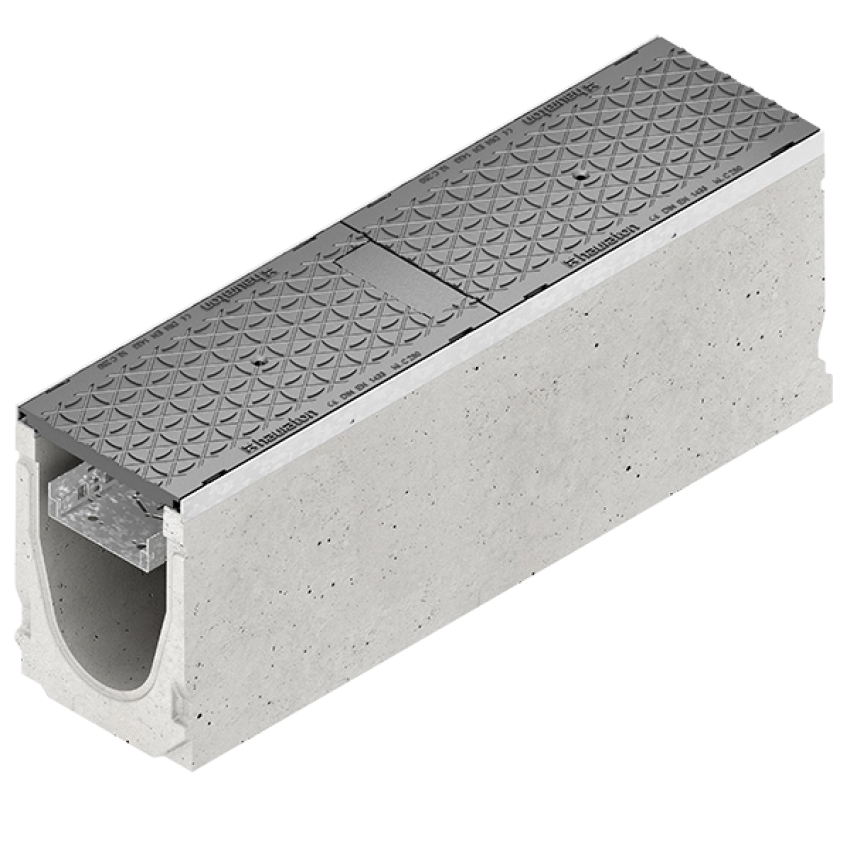

Product visualisation SERVICE CHANNELS

Your benefits with SERVICE CHANNEL

FASERFIX AND RECYFIX drainage channels have been cleverly adapted with the inclusion of a non-slip solid ductile iron cover and cable tray to provide safe, secure and practical management of cables and other service utilities. Suitable for external or internal areas, the SERVICE CHANNEL systems ensure invisible cable routing with quick and easy access for changing requirements or maintenance.

  • Choice of channel body possible: RECYFIX PRO: up to C 250, FASERFIX SUPER & FASERFIX KS up to E 600
  • High-quality materials (fibre-modified concrete or 100 % recycled composite) for maximum stability and safety
  • Long-term protection barrier against accidental damage or trip hazards
  • Easy installation with a wide range of connection options such as T- and corner connections for cost savings and flexibility
  • Internal cable routing for an attractive overall appearance with a large internal cross-section
  • Unique ductile iron covers with numerous combination options: closed or with opening for cable outlet
  • Option to route elevated cables and wires
  • Particularly suitable for industrial areas, factories, exhibition halls and stadiums

The HAURATON Product Finder

Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
Unfold all groups

  • SERVICE CHANNELS FASERFIX KS 100 made of fibre-reinforced concrete with 20 mm angle housing, class E 600

    • SERVICE CHANNELS RECYFIX STANDARD 100 made of polypropylene with polypropylene frame, class A 15

      • SERVICE CHANNELS FASERFIX KS 150 made of fibre-reinforced concrete with 20 mm angle housing, class E 600

        • SERVICE CHANNELS FASERFIX SUPER 150 made of fibre-reinforced concrete with 40 mm angle housing, class E 600

          • SERVICE CHANNELS FASERFIX KS 200 made of fibre-reinforced concrete with 20 mm angle housing, class E 600

            • SERVICE CHANNELS FASERFIX SUPER 200 made of fibre-reinforced concrete with 40 mm angle housing, class E 600

              • SERVICE CHANNELS RECYFIX PRO 200 made of polypropylene with 20 mm integrated polypropylene angle housing, class C 250

                • SERVICE CHANNELS RECYFIX STANDARD 200 made of polypropylene with 20 mm integrated polypropylene angle housing, class A 15

                  • SERVICE CHANNELS FASERFIX KS 300 made of fibre-reinforced concrete with 20 mm angle housing, class C 250

                    • SERVICE CHANNELS FASERFIX SUPER 300 made of fibre-reinforced concrete with 40 mm angle housing, class E 600

                      • SERVICE CHANNELS RECYFIX PRO 300 made of polypropylene with 20 mm integrated polypropylene angle housing, class C 250

                        • SERVICE CHANNELS FASERFIX SUPER 400 made of fibre-reinforced concrete with 40 mm angle housing, class E 600

                          • SERVICE CHANNELS FASERFIX SUPER 500 made of fibre-reinforced concrete with 40 mm angle housing, class E 600

                            Unfold all groups
                            deconstructed product image highlighting the most important parts of the product
                            Show descriptions Hide descriptions

                            End cap closed

                            Channels made of fibre reinforced concrete, according to DIN V 19580 / EN 1433, CE-conform with safety joint, steel angle housings and boltless locking system SIDE-LOCK with groove and tongue connection for exact installation

                            Cable routing system galvanised for laying various media and cables

                            Solid ductile iron cover, black, class E 600 with boltless locking system SIDE-LOCK

                            Ductile iron cover with opening for cables, anti-slip surface , KTL-coated, highly resistant, can be combined with the ductile iron cover

                            Cover for cable opening for ductile iron cover, black, KTL-coated

                            End cap without outlet, galvanised

                            System components
                            SERVICE CHANNELS

                            SIDE-LOCK boltless locking system

                            FASERFIX SERVICE CHANNEL systems feature SIDE-LOCK, a boltless locking system which allows covers to be easily removed and re-fitted during cable laying or removal. It takes a fraction of time to re-fit covers compared to systems with bolts.

                            The cover is positioned over the channel, foot pressure is simply applied and then a loud click is heard which confirms the cover is securely locked. The cover can be removed using a screwdriver inserted into a discreet leverage point.

                            Videos

                            References with SERVICE CHANNEL

                            The SERVICE CHANNEL has been utilised in many projects to ensure safe, secure and practical management of cables and other service utilities.
