Article No. 32072
SERVICE CHANNELS FASERFIX KS 200 made of fibre-reinforced concrete with 20 mm angle housing, class E 600
Ductile iron grating, closed, KTL-coated, black, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

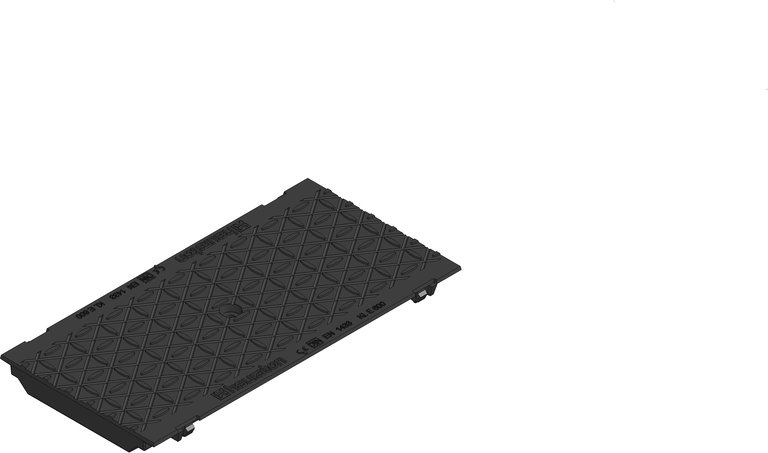

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32072
Length
500 mm
Width
249 mm
Height
37 mm
Inlay depth
20 mm
Weight
8.70 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0 mm
Fixing type
SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL, black, cl. E 600, MEDIA CHANNEL FASERFIX KS 200, 0.5 m
Product description
MEDIA CHANNEL FASERFIX KS 200 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32072
Packaging unit
108
