Article No. 32060
SERVICE CHANNELS FASERFIX SUPER 150 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron grating, closed, black, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

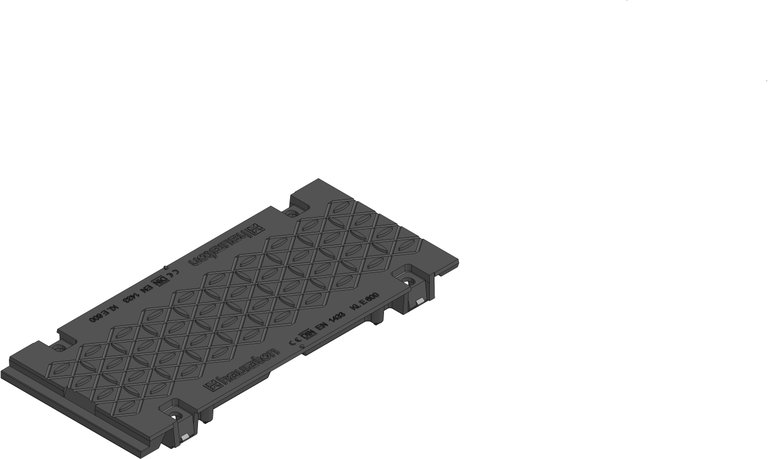

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32060
Length
500 mm
Width
229 mm
Height
48 mm
Inlay depth
40 mm
Weight
10.70 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
150
Inlet opening
0 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, black, cl. E 600, MEDIA CHANNEL FASERFIX SUPER 150, 0.5 m
Product description
MEDIA CHANNEL FASERFIX SUPER 150 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, 4-fold locking, load class A 15 - E 600 according to EN 1433, CE compliant, installation length 500 mm, item no. 32060
Packaging unit
70
Declaration of Performance
