Article No. 32098
SERVICE CHANNEL FASERFIX SUPER 400 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron solid cover, black, with plastic caps, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

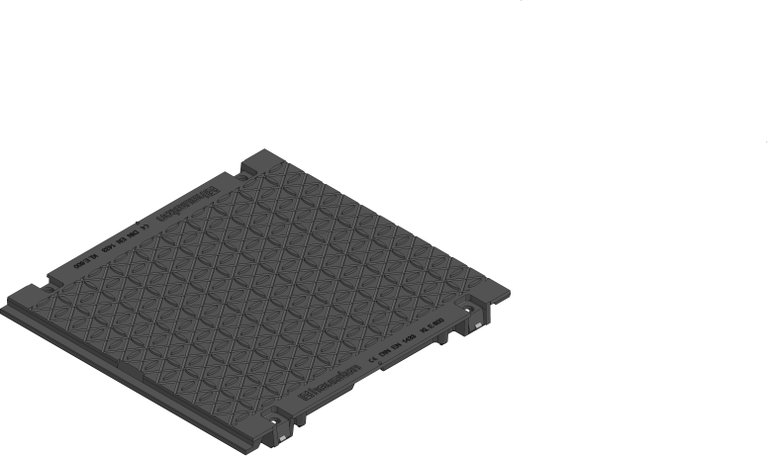

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32098
Length
500 mm
Width
477 mm
Height
60 mm
Weight
32.00 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
400
Inlet opening
0 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, black, with UPVC caps black, cl. E 600, SERVICE CHANNEL FASERFIX SUPER 400, 0,5 m
Product description
SERVICE CHANNEL FASERFIX SUPER 400 - ductile iron grating, closed, black, loading capacity from A 15 up to E 600 according to DIN 19580 / EN 1433, CE-conform, 4-times locking, with plastic pins, Length: 500mm, Item No. 32098
Packaging unit
32
Declaration of Performance
