Article No. 32090

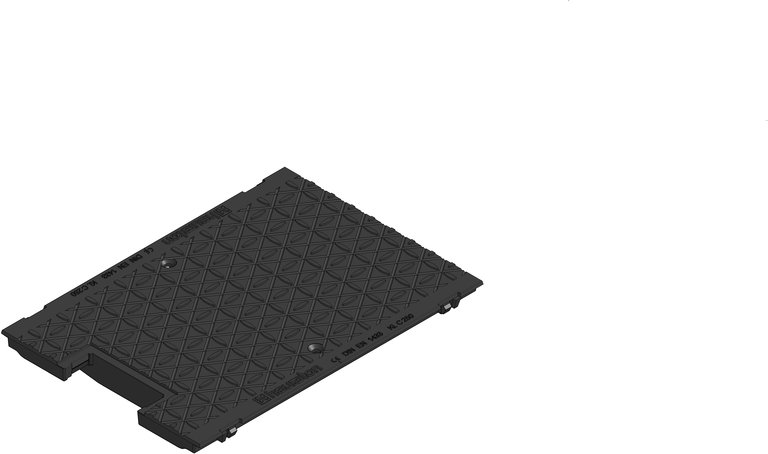

SERVICE CHANNELS RECYFIX PRO 300 made of polypropylene with 20 mm integrated polypropylene angle housing, class C 250
Ductile iron grating with opening for cables, KTL-coated, black, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32090
Length
500 mm
Width
349 mm
Height
49 mm
Inlay depth
20 mm
Weight
14.10 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
0.0 cm²/m
Nominal size
300
Inlet opening
0 mm
Fixing type
Loose blatant, Locking handle
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, with opening for cables, KTL, black, cl. C 250, MEDIA CHANNEL RECYFIX PRO 300, 0.5 m
Product description
MEDIA CHANNEL RECYFIX PRO 300 - Ductile iron grating closed, with opening for cables, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, with locking option, installation length 500 mm, item no. 32090
Packaging unit
80
Declaration of Performance
