Article No. 32106
SERVICE CHANNELS RECYFIX STANDARD 100 made of polypropylene with polypropylene frame, class A 15

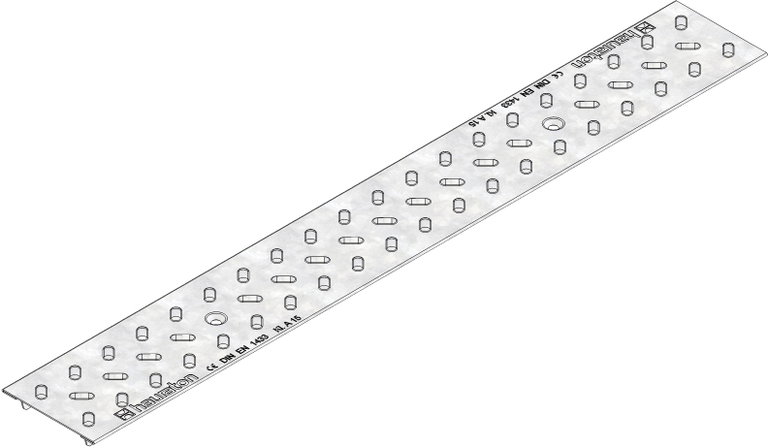

Bulp plate, closed, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32106
Length
1000 mm
Width
137 mm
Height
25 mm
Inlay depth
4 mm
Weight
3.10 kg
Material
strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
0 mm
Fixing type
Loose blatant, Locking handle
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Bulb plate closed, galvanised, cl. A 15, MEDIA CHANNEL RECYFIX STANDARD 100, 1 m
Product description
MEDIA CHANNEL RECYFIX STANDARD 100 - Bulb plate, closed, galvanised, load class A 15 according to EN 1433, length 1000 mm, item no. 32106
Packaging unit
179
Declaration of Performance
