Article No. 10189
Drop Kerbs
Left hand Drop Kerb L305
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical drawing
Drawing (CAD)
Drawing

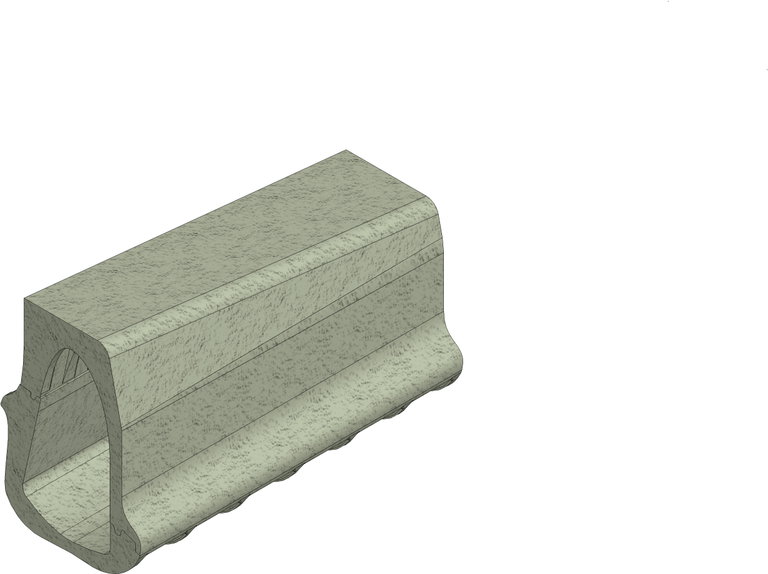

Product image
Data Sheet
Technical information and metrics
Article No.
10189
Length
500 mm
Width
215 mm
Height
255 - 305 mm
Weight
7.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
110
Internal channel cross-section
224 cm²
Fall
-
Type according to DIN EN 1433
M
Sales text
KERBFIX Left hand Drop Kerb L305, D 400, 0,5 m
Product description
KERBFIX 305 - Left Hand Drop Kerb L305 with integrated drainage, made of recycled PP, grey, according to EN 1433, loading capacity from A 15 - D 400, L/W/H 500/215/305-255 mm, item no. 10189
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
