Technical information and metrics
Article No.
10186
Length
500 mm
Width
459 mm
Height
353 mm
Weight
78.00 kg
Nominal width | System size
110
Clear channel cross-section
-
Inlet cross-section
0 cm²/m
Material
Ductile iron GJS 500-7
Regulations
DIN 1433
Sales text

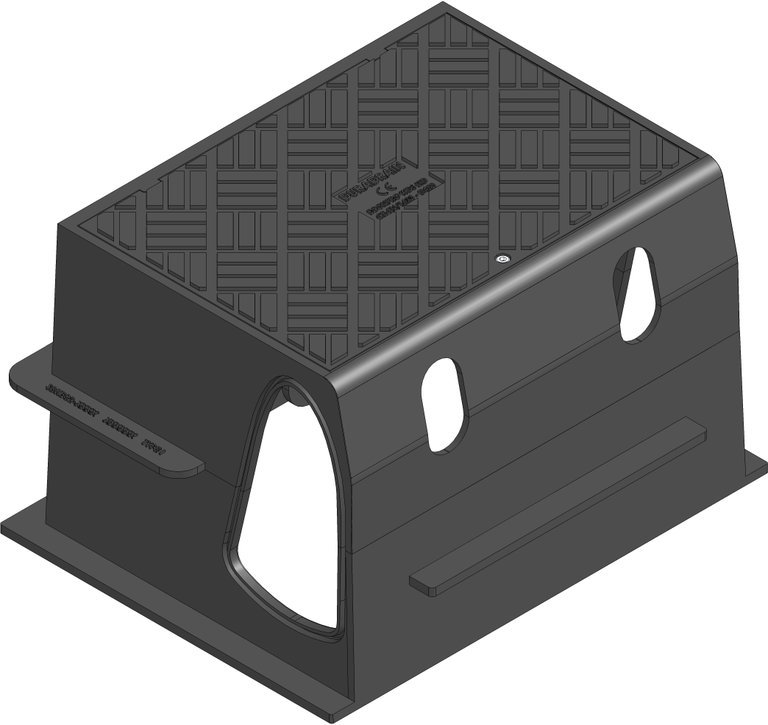

KERBFIX Half Battered Gully Outfall, cl. D 400, 0.5 m
Product description
KERBFIX - Half Battered Gully Outfall, made of ductile iron with ductile iron cover, according to EN 1433, to sit over standard street gullies, free outfall with 2 side openings as water inlets, load class A 15 - D 400, LxWxH 500x440x305 mm, item no. 10186
Brochure text
Half Battered Gully Outfall
Tender Texts
Installation example
Kl. A 15 - D 400 - Concrete
Kl. A 15 - D 400 - Aasphalt
