Article No. 10188
Half Battered Kerb
Half Battered Rodding Access/Outlet Unit
Questions?
Our experienced planning team will be happy to help you.
Get in touch

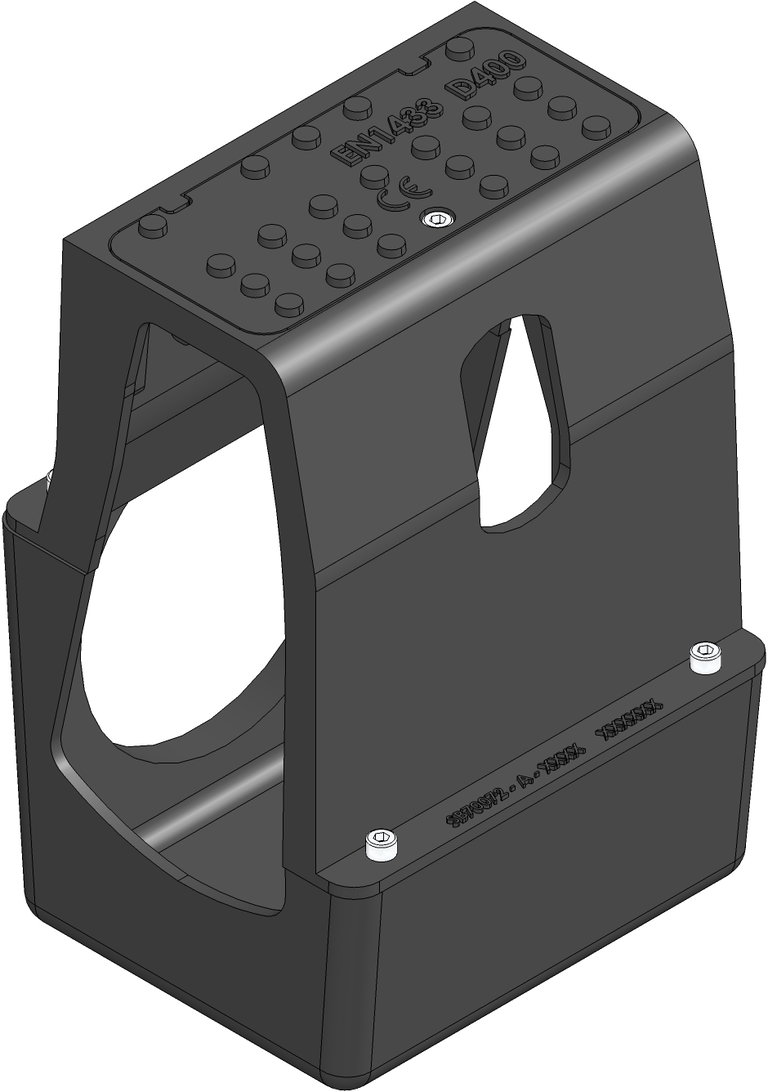

Product image
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
10188
Length
250 mm
Width
215 mm
Height
360 mm
Weight
19.00 kg
Nominal width | System size
110
Clear channel cross-section
-
Inlet cross-section
0 cm²/m
Material
Ductile iron GJS 500-7
Regulations
DIN 1433
Sales text
KERBFIX Half Battered Rodding Access/Outlet Unit, D 400, 0.25 m
Product description
KERBFIX - Half Battered Rodding Access/Outlet Unit, made of ductile iron, with ductile iron cover, with lateral pipe connection possibility DN/OD 162 mm, load class A 15 - D 400, according to EN 1433, LxWxH 250x215x360 mm, item no. 10188
Brochure text
Half Battered Rodding Access/Outlet Unit
Tender Texts
Installation example
Kl. A 15 - D 400 - Concrete
Kl. A 15 - D 400 - Aasphalt
