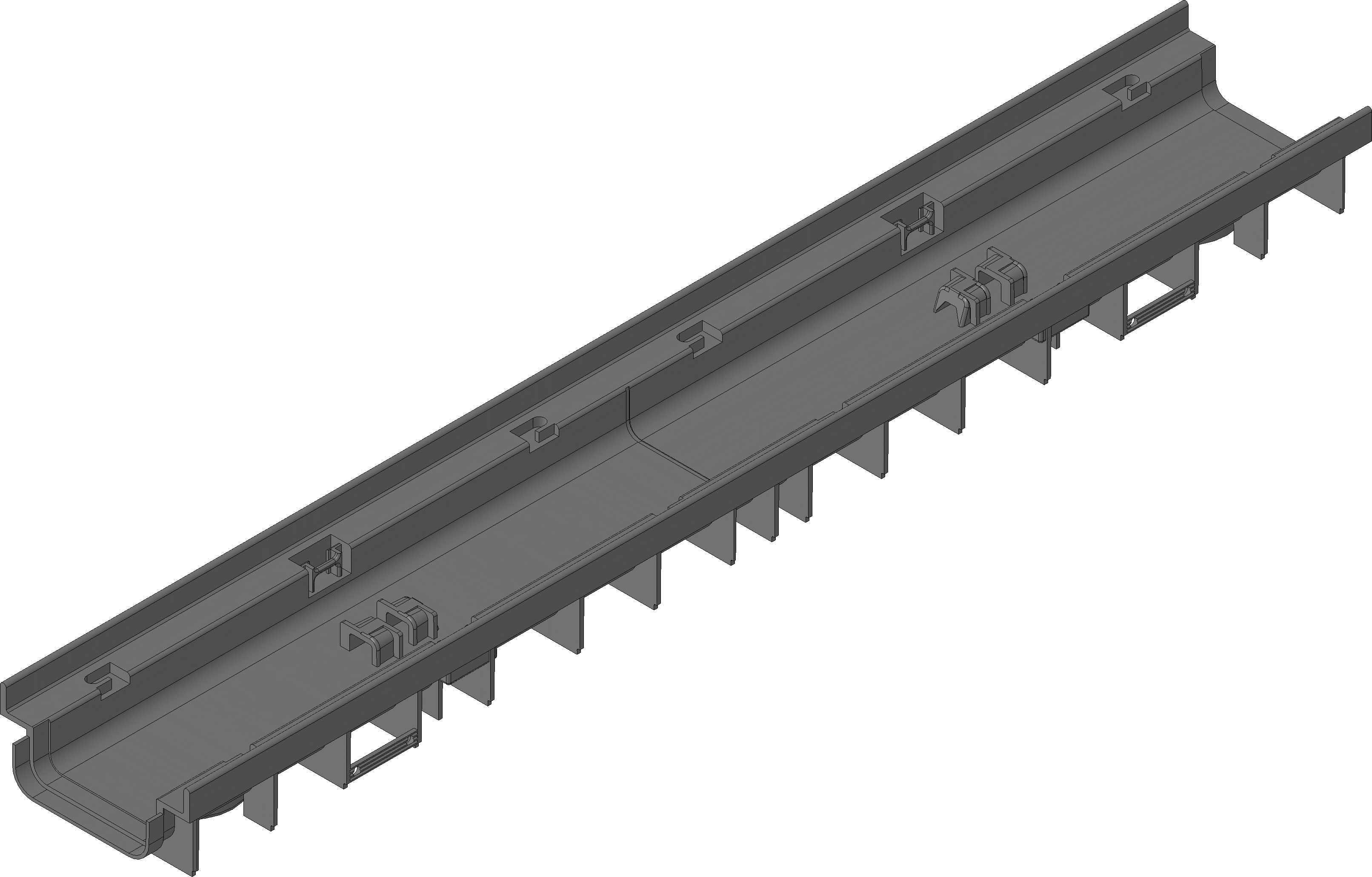

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47030
Length
1000 mm
Width
160 mm
Height
75 mm
Weight
1.17 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
35 cm²
Fall
-
Fixing type
Loose blatant, Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel body type 75 with integrated edge frames, 1 m
Product description
RECYFIX PRO 100 type 75 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75, load class A 15 - D 400 according to EN 1433, LxWxH 1000x160x75 mm, item no. 47030
Packaging unit
112
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
