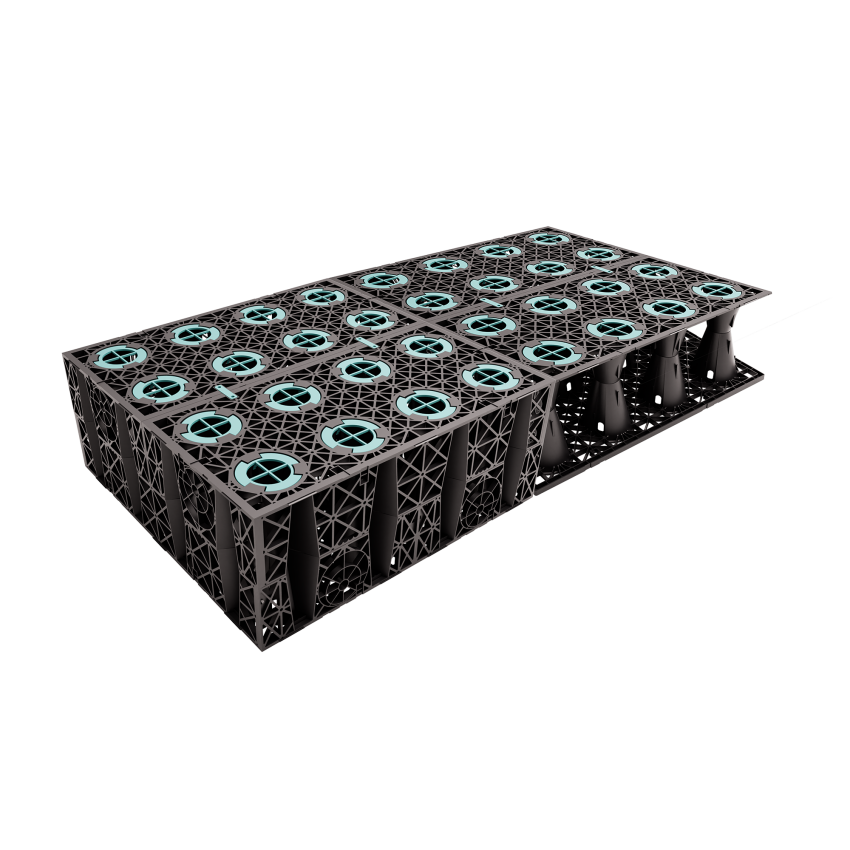

DRAINFIX BLOC HD
The retention and infiltration system for residential, commercial and industrial areas
Our solution – your benefit with DRAINFIX BLOC HD
The DRAINFIX BLOC HD infiltration and attenuation crate system is designed for the collection, retention and infiltration of stormwater in areas subject to heavy traffic loads. With a compressive strength suitable for SLW40 applications, the system is particularly effective beneath parking areas, access roads, logistic and industrial sites.
The unique dual-crate configuration is made up of an open inner crate with a closed outer crate, providing a speedier install and efficient transportation. The design also offers structural stability and internal accessibility for flow and inspection.
Manufactured from 100% recycled plastic, the system combines practicality and long-term durability with a sustainable use of resources. A high void ratio of 95.8% ensures excellent storage capacity, reducing the number of units required and simplifying installation.
-
High-load bearing capacity for trafficked surfaces in commercial, industrial and residential areas
-
Very high storage volume: up to 383.2 litres per module (1m x 1m x 0.4m)
-
Manufactured from recycled plastic with excellent resistance to chemicals and UV
-
Dual-crate design: internal open structure allows inspection and flow, while the outer closed crate ensures stability
-
Suitable for installation depths of up to 3.9m (depending on soil conditions)
-
Simple and flexible connection to inlet and outlet pipework, inspection shafts and cleaning systems
-
Fully compatible with HAURATON channel drainage and rainwater treatment systems or complete SuDS solutions
-
Fully recyclable following lifetime use
The HAURATON Product Finder
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
DRAINFIX BLOC HD – for retention and infiltration projects
The issues of retention and infiltration are increasingly urgent concerns for the world, due to more frequent droughts and deluges of rainwater. DRAINFIX BLOC HD can be used across both types of projects, offering a versatile solution to dealing with the challenges of our current environment.
Infiltration (permeable system)
Infiltration systems capture stormwater where it falls and gradually release it back into the environment. DRAINFIX BLOC HD can be used for filtration projects when wrapped in a non-woven, needle punched geotextile. The permeable geotextile allows for water to seep into the soil in a controlled manner, decreasing flood risk and the need for costly drainage infrastructure.
Retention (sealed system)
Retention systems temporarily store excess rainwater and release it slowly into drainage networks or natural waterways. DRAINFIX BLOC HD can be incorporated into retention projects with the use of a sealed (impermeable) geomembrane – wrapped around the tank and either welded or taped/glued closed. A protection fleece is then wrapped around to protect the geomembrane.
