Article No. 65000
DACHFIX STEEL 115, height 45 mm
Type 45, galvanised, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

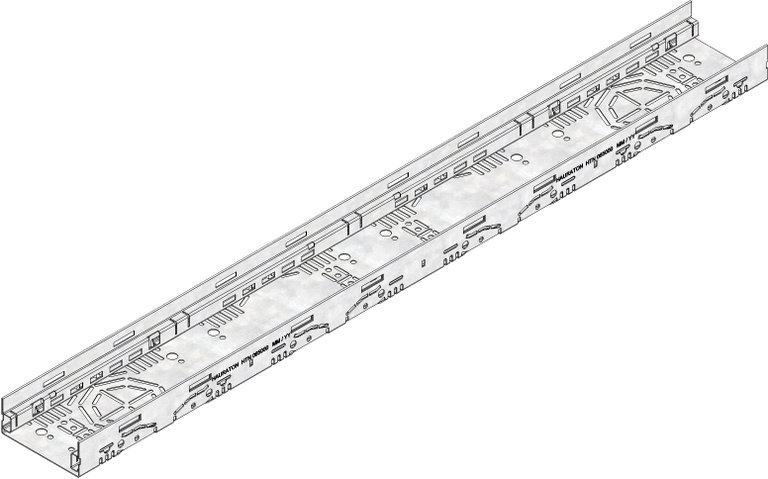

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65000
Length
1000 mm
Width
115 mm
Height
45 mm
Weight
2.10 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
27 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 115 Channel Type 45 galvanised, height 45 mm, L 1,0 m
Product description
DACHFIX STEEL 115 - channel type 45, made of corrosion-resistand galvanised steel, walkable and wheelchair-accessible respectively,grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75, L/W/H 1000x115x45 mm, Item No. 65000
Packaging unit
396
Tender Texts
Installation instructions
Installation example
wheelchair accessible, drainage without channel connection
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
Wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
flagstone surface class Walkable
wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection
Wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair accessible, drainage without channel connection
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
flagstone surface class Walkable
