Article No. 65421
Extension frame element 40 x 40
Fram, type 55, galvanised
Questions?
Our experienced planning team will be happy to help you.
Get in touch

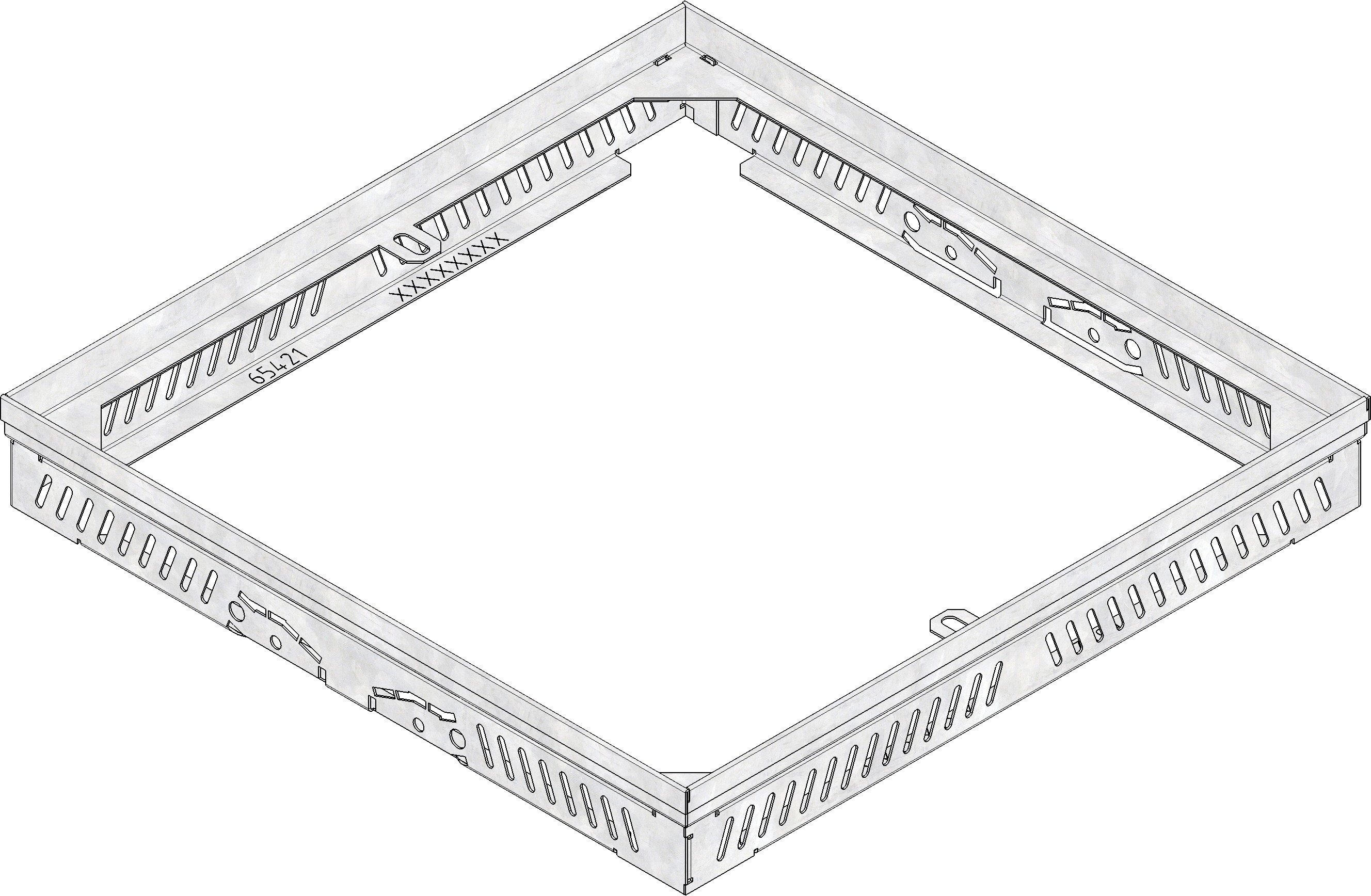

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65421
Length
400 mm
Width
400 mm
Height
55 mm
Weight
1.12 kg
Material
strip galvanized steel
Height of angle housing
-
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
Extension frame element 40/40 type 55 as inspection shaft of installation height 55 mm, galvanised, cl. A 15, DACHFIX POINT Gully 40 /40 type 55
Product description
DACHFIX POINT Gully 40/40 type 55, made of galvanised steel, also for maintenance purposes above a flat roof drain, with connection possibility for cross-intersection channel, load class A 15, LxWxH 400x400x55 mm, item no. 65421
Packaging unit
60
