Article No. 8591
FASERFIX KS 100, class A 15
Longitudinal slot grating, SW 10 mm, stainless steel, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

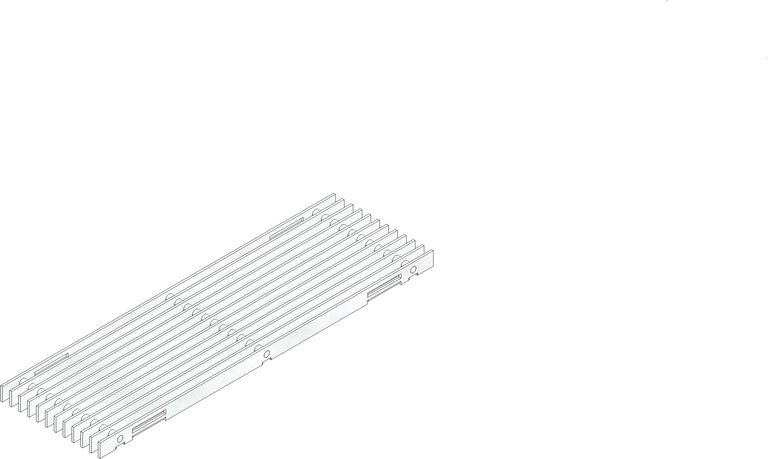

Technical drawing
Drawing (CAD)
Drawing
Product image
Data Sheet
Technical information and metrics
Article No.
8591
Length
500 mm
Width
149 mm
Height
20 mm
Weight
2.98 kg
Material
Stainless steel 1.4301
Intake cross-section
1033.0 cm²/m
Nominal size
100
Inlet opening
0
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Longitudinal grating, bar distance 10 mm, stainless steel, cl. A 15, KS 100, 0,5 m
Product description
KS 100 - longitudinal grating, bar distance 10 mm, stainless steel CNS 1.4301 (AISI 304), with horizontal thrust resistance, loading capacity A 15 according to EN 1433, CE compliant, installation length 500 mm, item no. 8591
Packaging unit
200
Declaration of Performance
