Article No. 8590
FASERFIX KS 100, class A 15
Longitudinal slot grating SW 10 mm, stainless steel, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view

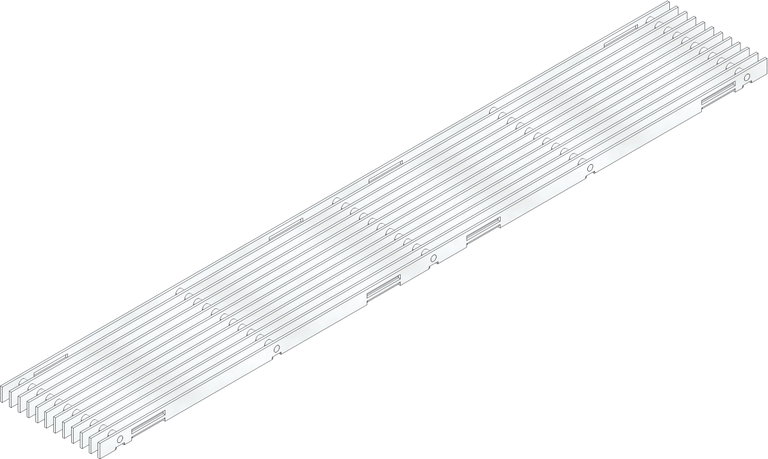

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8590
Length
1000 mm
Width
149 mm
Height
20 mm
Weight
5.94 kg
Material
Stainless steel 1.4301
Intake cross-section
1050.0 cm²/m
Nominal size
100
Inlet opening
0
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Longitudinal grating, bar distance 10 mm, stainless steel, cl. A 15, KS 100, 1 m
Product description
KS 100 - longitudinal grating, bar distance 10 mm, stainless steel CNS 1.4301 (AISI 304), with horizontal thrust resistance, loading capacity A 15 according to EN 1433, CE compliant, eightfold locking, installation length 1000 mm, item no. 8590
Packaging unit
202
Declaration of Performance
