Article No. 8078
FASERFIX KS 100, class B 125
Mesh grating MS 30/30 mm, galvanised, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

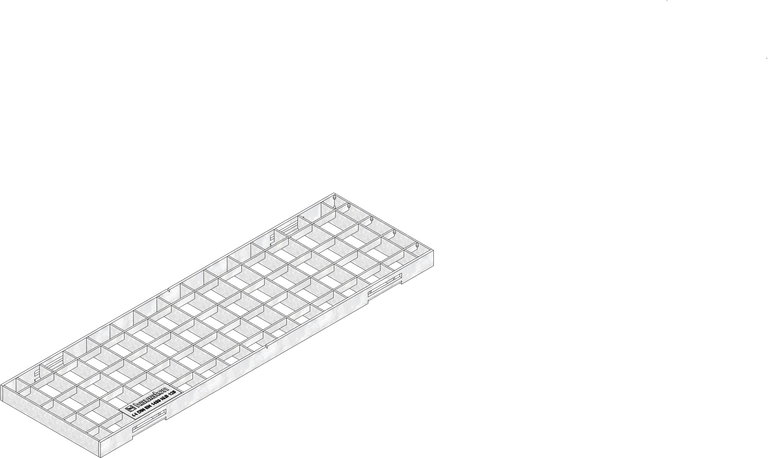

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8078
Length
500 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
1.50 kg
Material
hot-dip galvanised steel
Intake cross-section
1230.0 cm²/m
Nominal size
100
Inlet opening
30
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/30 mm, galvanised, cl. B 125, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Mesh grating MS 30/30 mm, galvanised, load class A 15 - B 125 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 8078
Packaging unit
400
Declaration of Performance
