Article No. 11099
FASERFIX KS 150, class C 250
FIBRETEC design slotted grating SW 148/10 mm, in the colour black, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

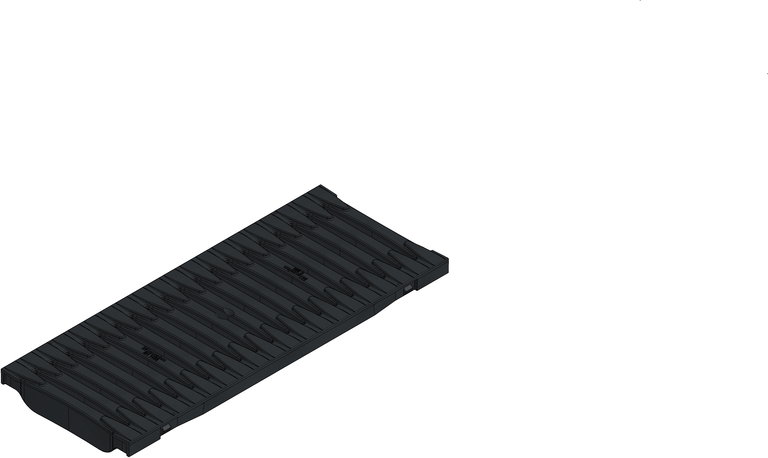

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
11099
Length
500 mm
Width
199 mm
Height
40 mm
Weight
2.02 kg
Material
reinforced Polyamide
Intake cross-section
500.0 cm²/m
Nominal size
150
Inlet opening
9
Fixing type
Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433
Sales text
FIBRETEC design slotted grating, SW 9 mm, black, cl. C 250, FASERFIX KS 150, 0,5 m
Product description
FASERFIX KS 150 - FIBRETEC design slotted grating, SW 9 mm, with horizontal thrust resistance and locking handle, black, made of reinforced polyamide, loading capacity from A 15 up to C 250, installation length 500 mm, item no. 11099
Packaging unit
-
Declaration of Performance
