Article No. 12575
FASERFIX KS 200, class C 250
Mesh grating MS 30/10 mm, stainless steel, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

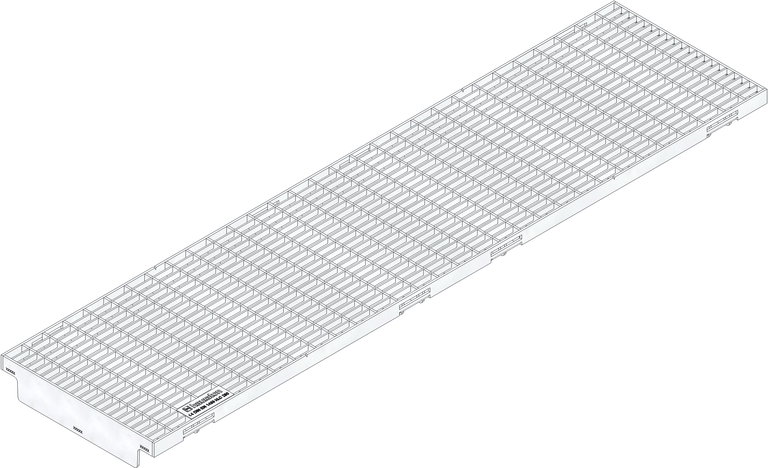

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
12575
Length
1000 mm
Width
249 mm
Height
51 mm
Einlegetiefe
20 mm
Weight
10.84 kg
Material
Stainless steel 1.4301
Intake cross-section
1850.0 cm²/m
Nominal size
200
Inlet opening
10
Fixing type
SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, stainless steel, cl. C 250, FASERFIX KS 200, 1 m
Product description
FASERFIX KS 200 - Mesh grating MS 30/10 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 12575
Packaging unit
100
Declaration of Performance
