Article No. 12763
FASERFIX KS 200, class D 400
Ductile iron grating SW 18 mm, black, KTL-coated, locked, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

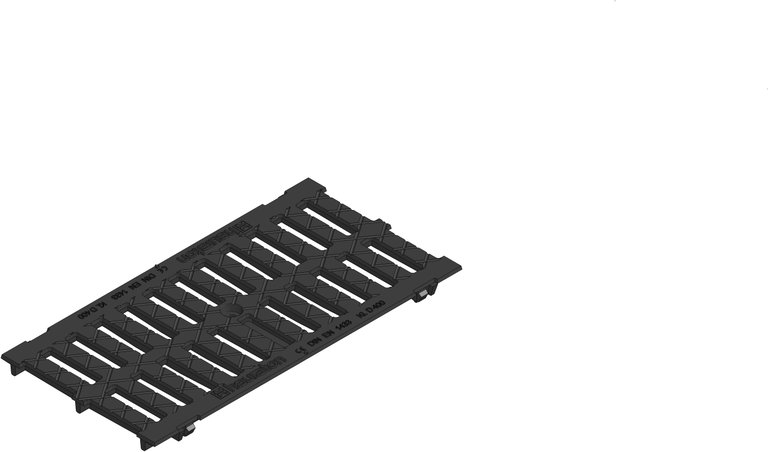

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
12763
Length
500 mm
Width
249 mm
Height
25 mm
Weight
6.90 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
724.0 cm²/m
Nominal size
200
Inlet opening
18
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
ductile iron grating SW 18 mm, KTL, cl. D 400, FASERFIX KS 200, 0,5 m
Product description
FASERFIX KS 200 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 2 x 85/18 mm, KTL-coated, with horizontal thrust resistance, loading capacity from A 15 - D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 12763
Packaging unit
126
Declaration of Performance
