Article No. 12071
FASERFIX KS 200, class E 600
Mesh grating MW 11/30 mm, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

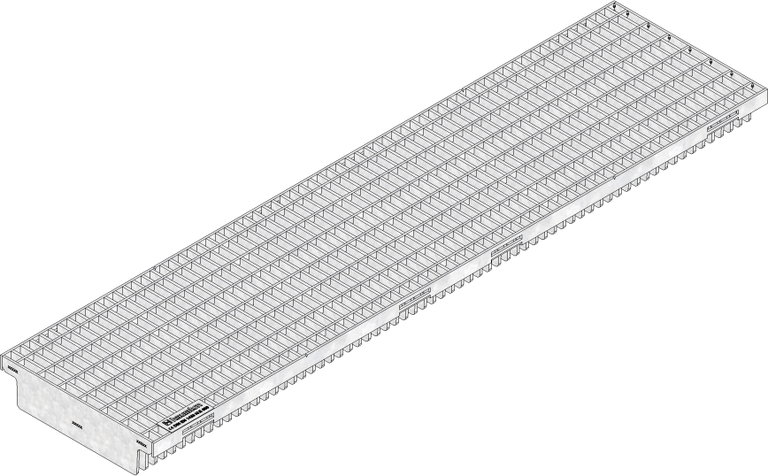

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
12071
Length
1000 mm
Width
249 mm
Height
61 mm
Weight
28.40 kg
Material
hot-dip galvanised steel
Intake cross-section
1309.0 cm²/m
Nominal size
200
Inlet opening
30
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating, mesh width: 11/30 galvanised, cl. E 600, KS 200, 1 m
Product description
KS 200 - Mesh grating, galvanised, loading capacity from A 15 up to E 600 according to DIN 19580 / EN 1433, CE-conform, mesh width 11/30 mm, length: 1000 mm, Item No. 12071
Packaging unit
35
Declaration of Performance
