Article No. 24244
FASERFIX SUPER 300 with galvanised angle housings, up to load class F 900
Type 020, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

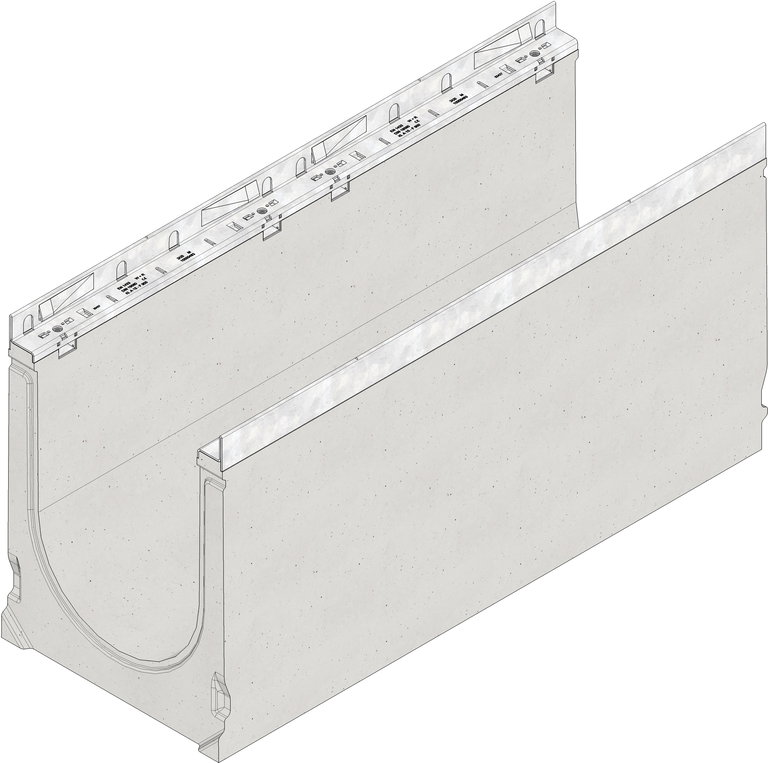

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24244
Length
1000 mm
Width
390 mm
Height
510 mm
Weight
173.11 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
1088 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 300 channel type 020
Product description
FASERFIX SUPER 300 type 020 - channel body made of fibre reinforced concrete, loading capacity from A 15 to F 900 according to EN 1433, CE compliant, with with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, insert depth grating 40 mm, L/W/H 1000x390x510 mm, item no. 24244
Packaging unit
6
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Asphalt class A 15 - D 400
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement / large-size slab class D 400 - E 600
Concrete class D 400 - F 900
Pavement / large-size slab class E 600 - F 900
Asphalt class F 900
Pavement class A 15 - C 250
Pavement class D 400
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Asphalt class E 600
Asphalt class F 900
Installation instructions
