Article No. 32949
FASERFIX SUPER 500, class E 600
Ductile iron grating 3x SW 140/18 mm, black, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

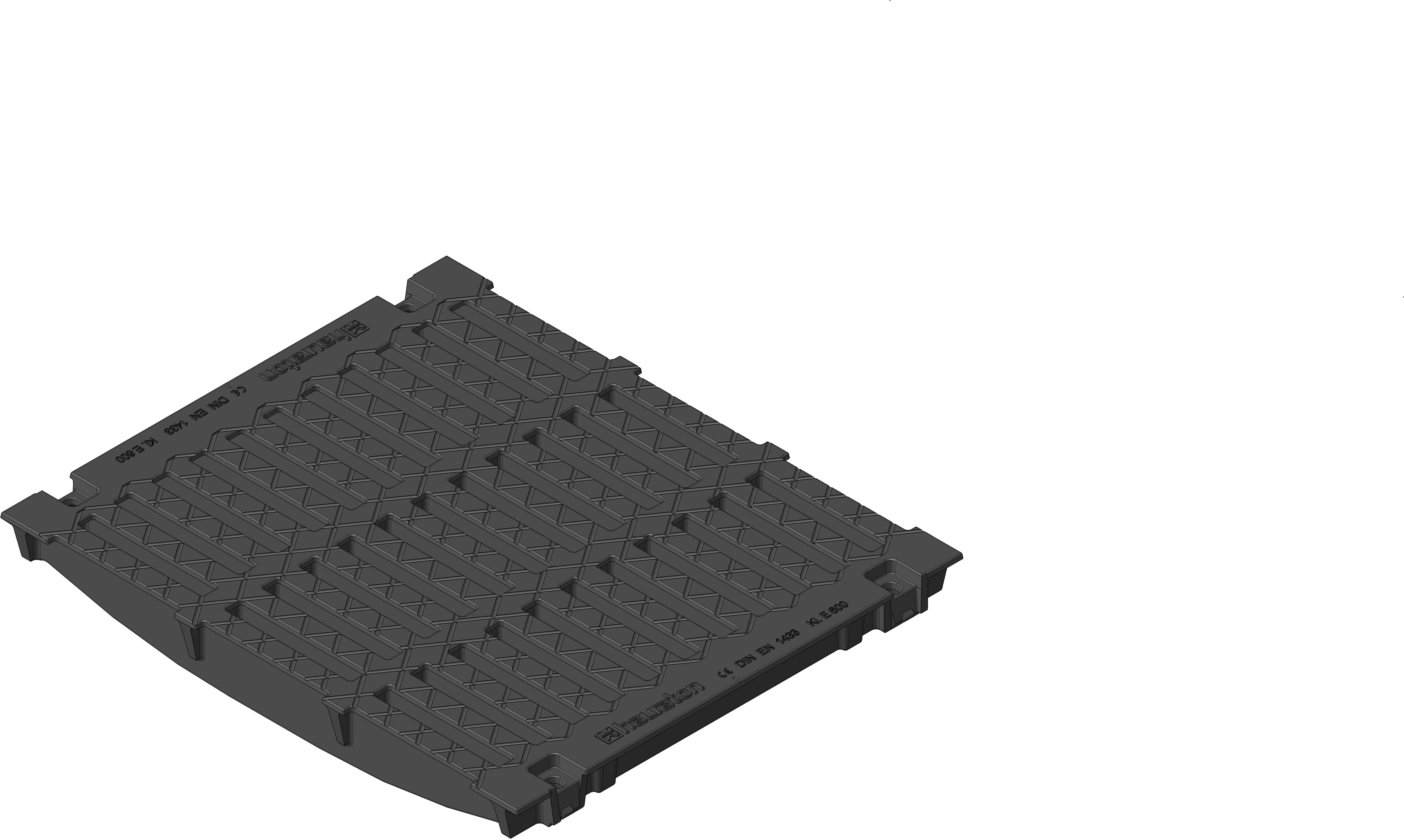

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
32949
Length
500 mm
Width
579 mm
Height
70 mm
Einlegetiefe
40 mm
Weight
39.65 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1810.0 cm²/m
Nominal size
500
Inlet opening
18
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
DIN 19580
Sales text
Ductile iron grating 3x SW 140/18 mm, black, cl. E 600, FASERFIX SUPER 500, 0.5 m
Product description
FASERFIX SUPER 500 - Ductile iron grating 3x SW 140/18 mm, made of spheroidal ductile iron EN-GJS, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32949
Packaging unit
24
Declaration of Performance
