Article No. 65329
Gratings 30 x 30, Class A 15
Longitudinal grating, bar distance 12 mm, galvanised
Questions?
Our experienced planning team will be happy to help you.
Get in touch

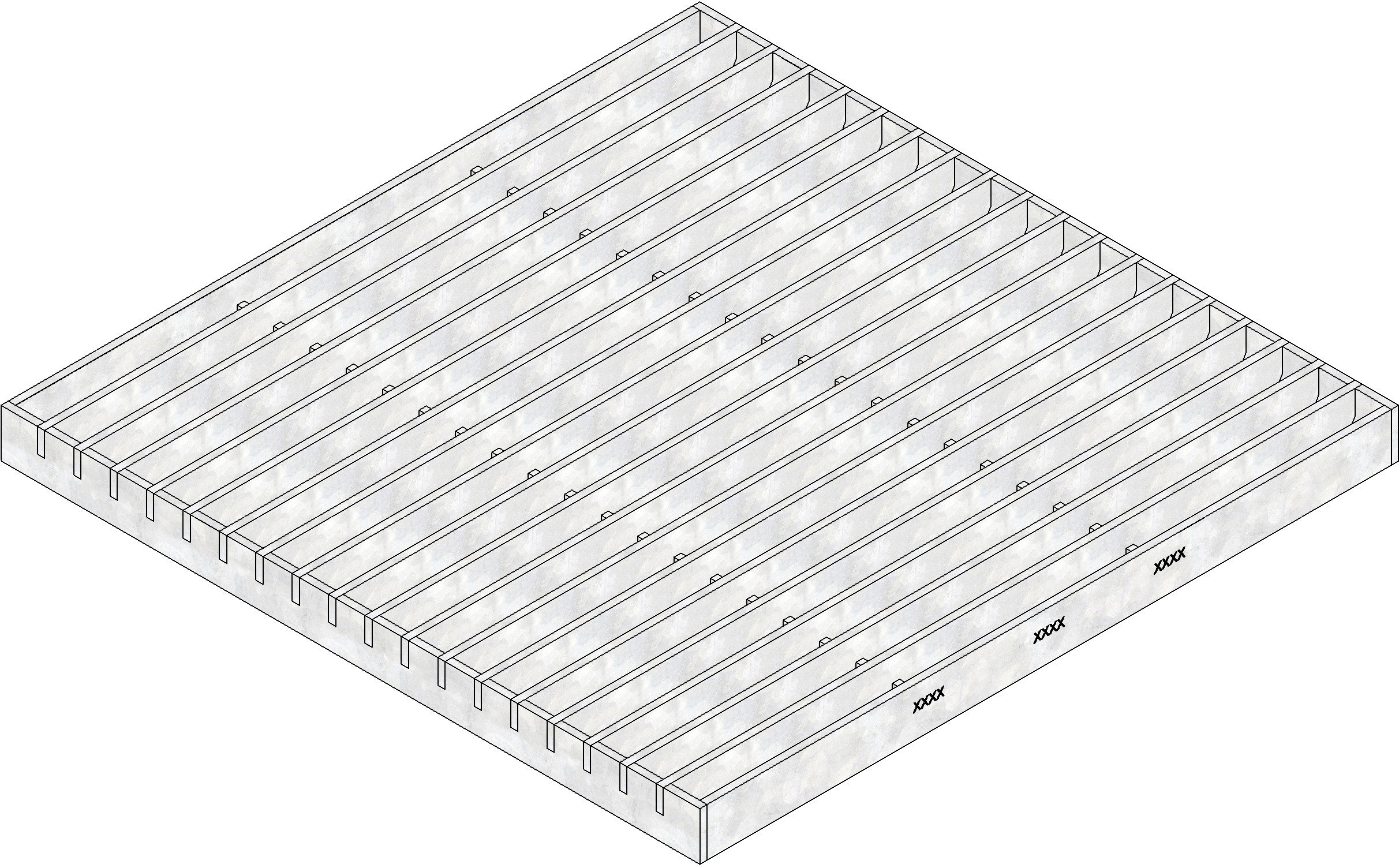

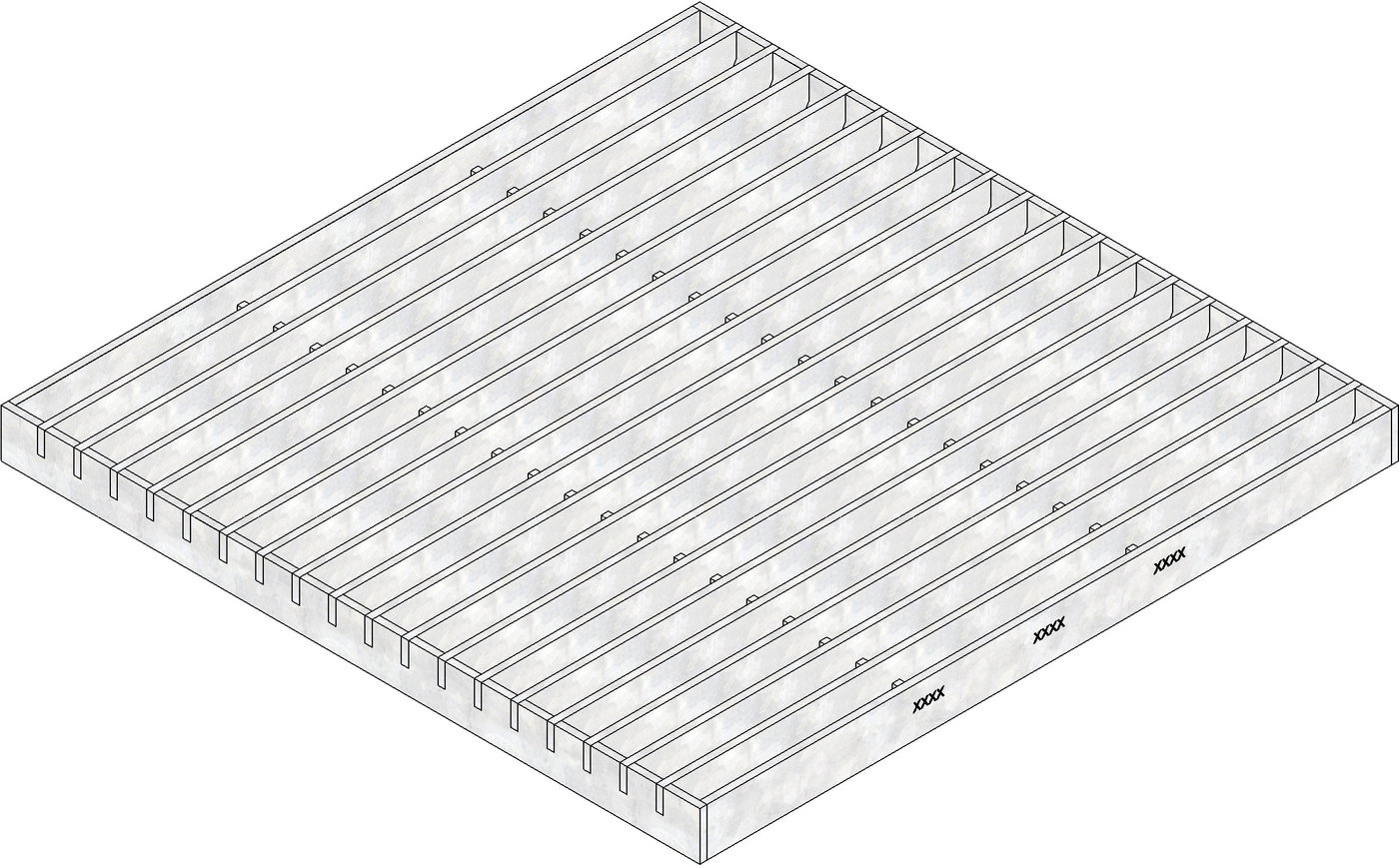

Product image
Technical drawing
Drawing (CAD)

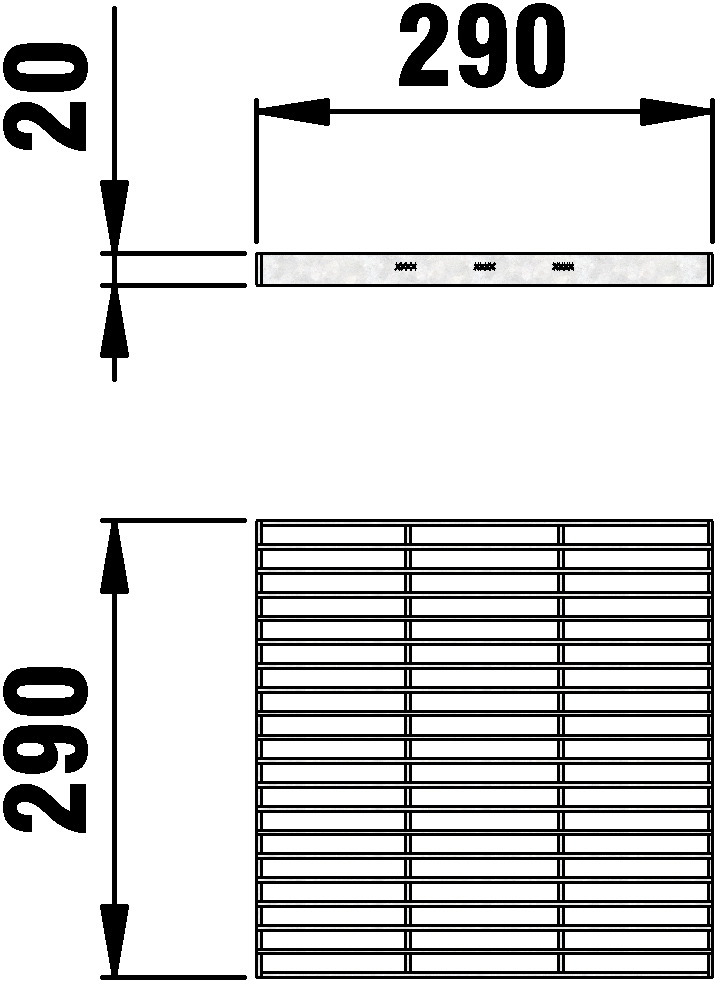

Drawing

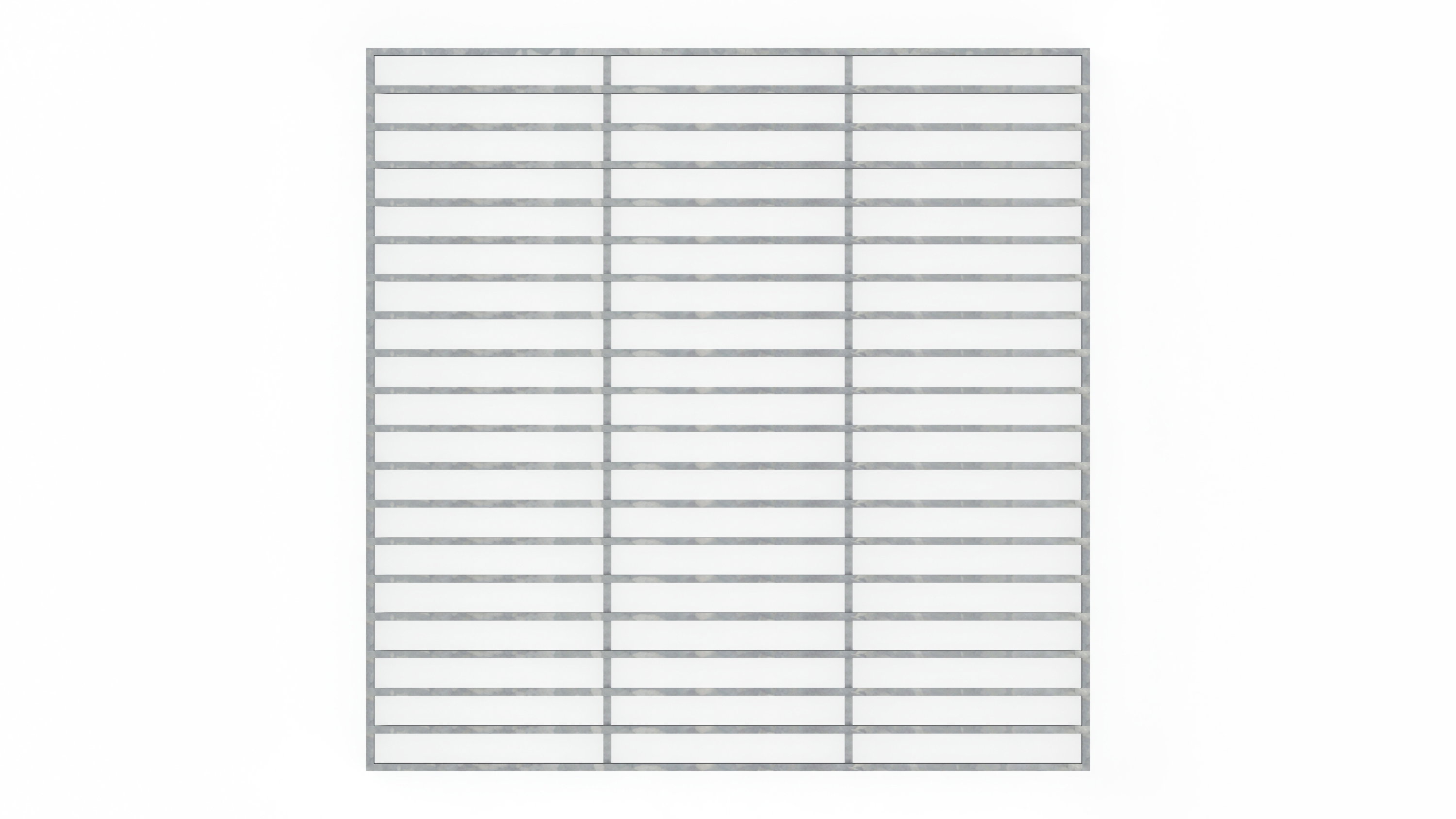

Top view
Data Sheet
Technical information and metrics
Article No.
65329
Length
290 mm
Width
290 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.15 kg
Material
hot-dip galvanised steel
Intake cross-section
2108.0 cm²/m
Inlet opening
0
Material grating
hot-dip galvanised steel
Sales text
Longitudinal grating bar distance 12 mm, galvanised, bar thickness 3 mm, cl. A 15, DACHFIX STEEL Sump unit 300 / DACHFIX POINT Gully 30/30
Product description
DACHFIX STEEL Sump unit 300 / DACHFIX POINT Gully 30/30 - Longitudinal grating, bar distance 12 mm, bar thickness 3 mm, made of galvanised steel, load class A 15, optionally screwable, LxW 290x290 mm, item no. 65329
Packaging unit
300
