Article No. 65379
Gratings 30 x 30, Class A 15
Longitudinal grating, bar distance 12 mm, stainless steel
Questions?
Our experienced planning team will be happy to help you.
Get in touch

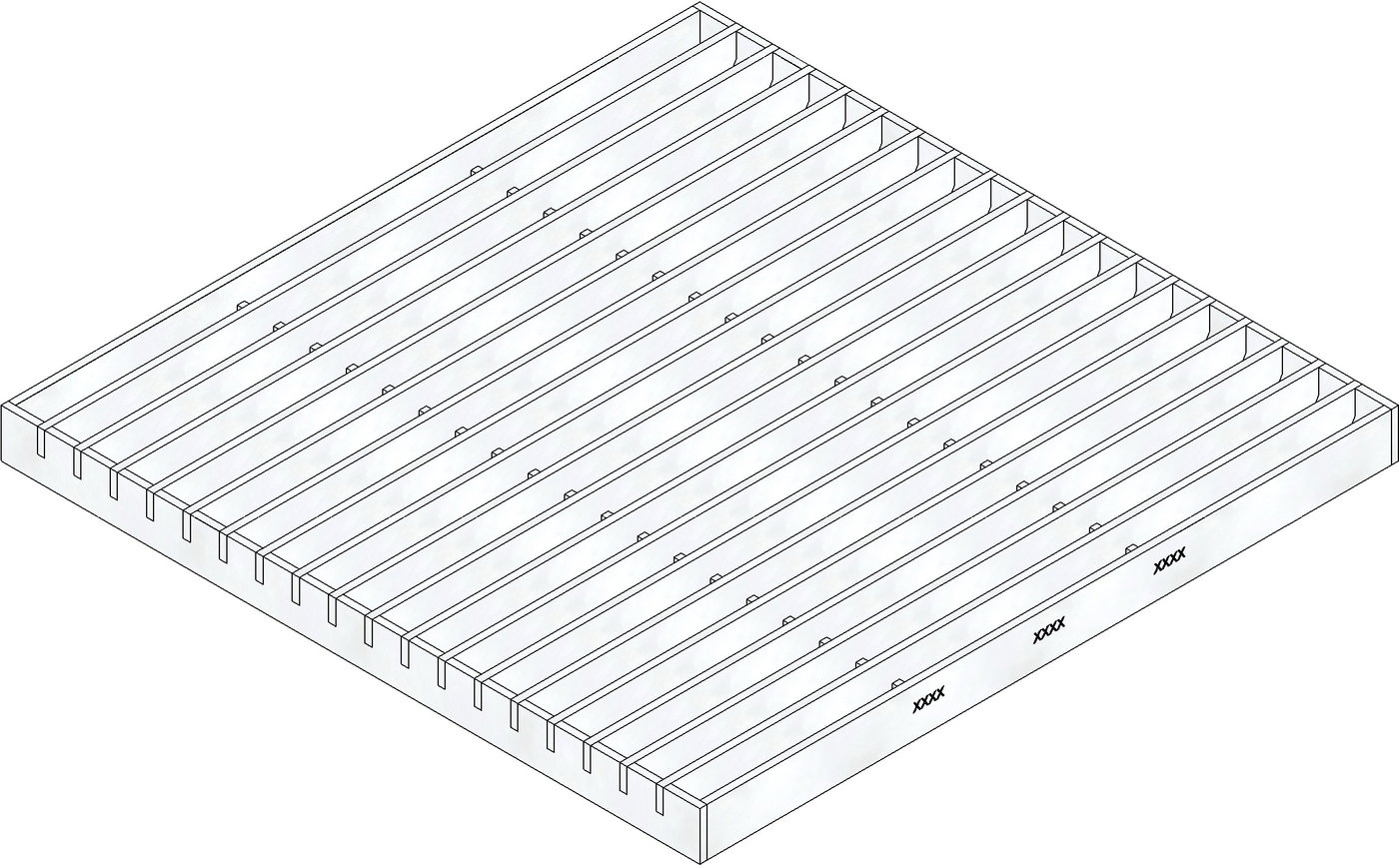

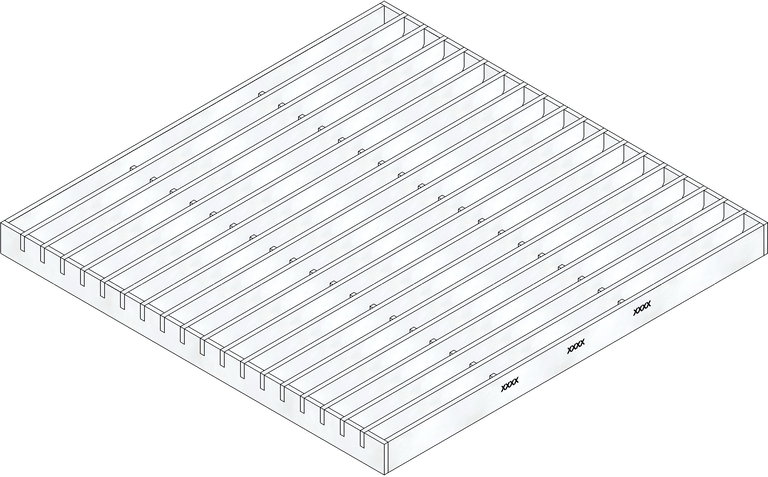

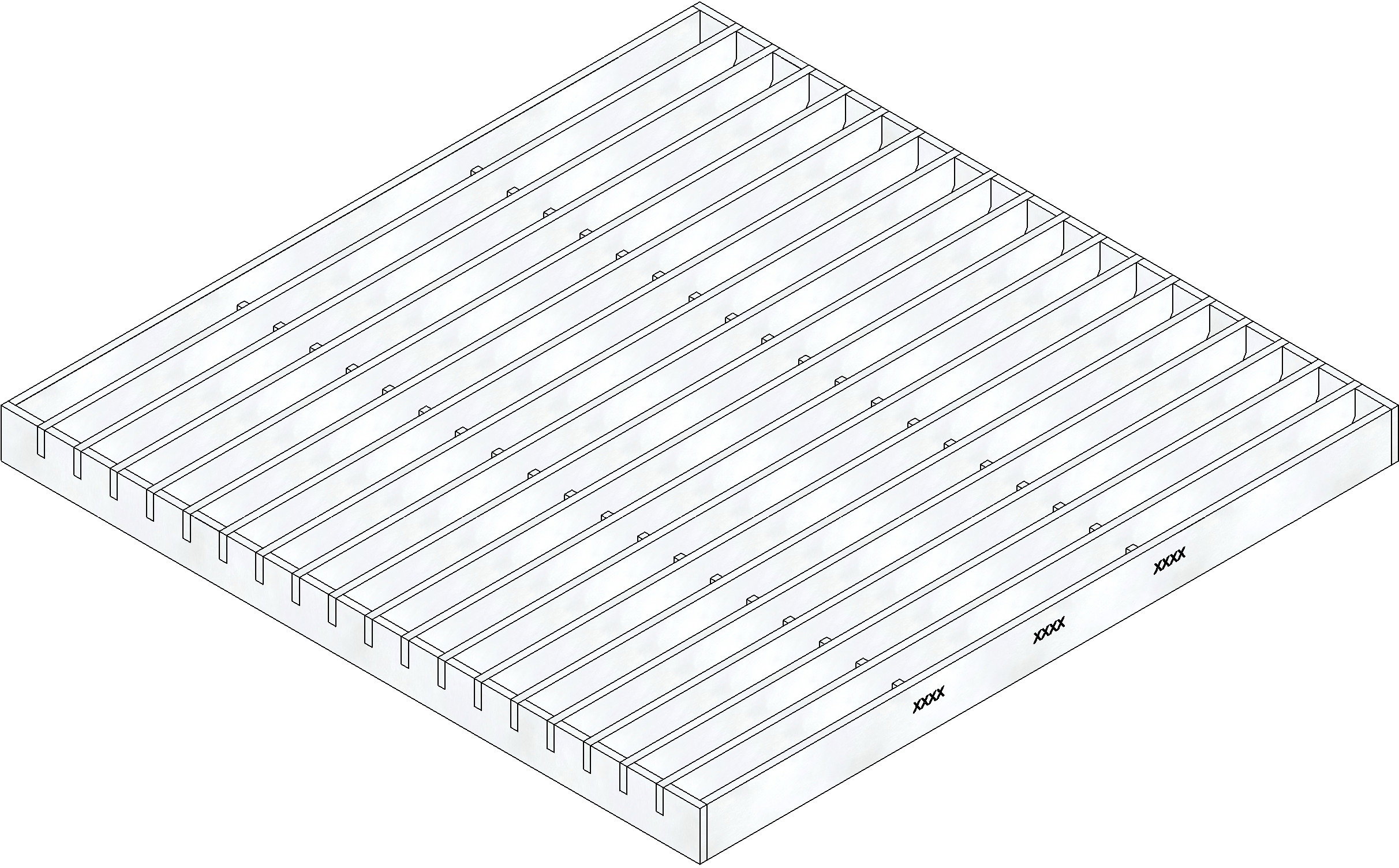

Product image

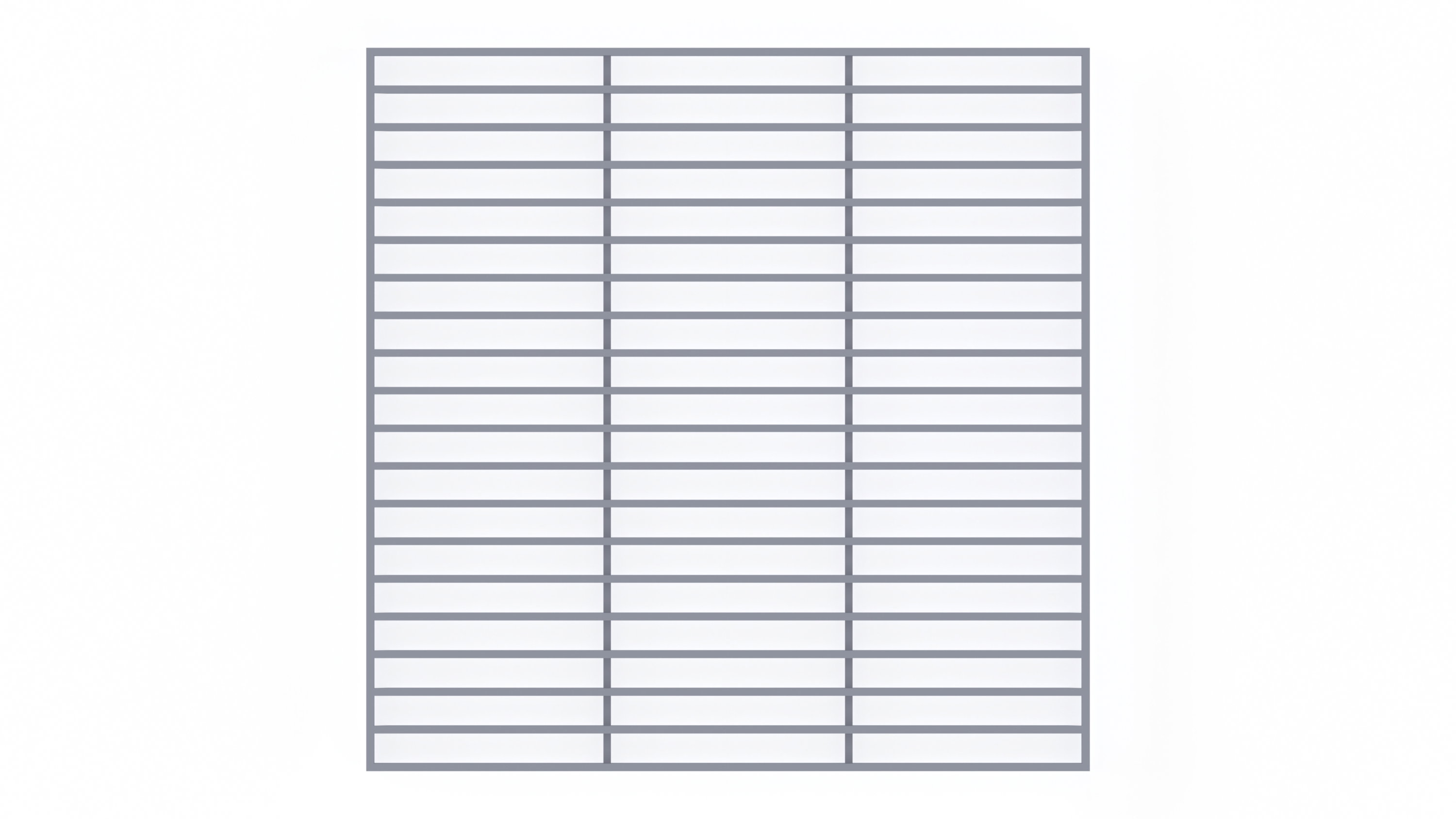

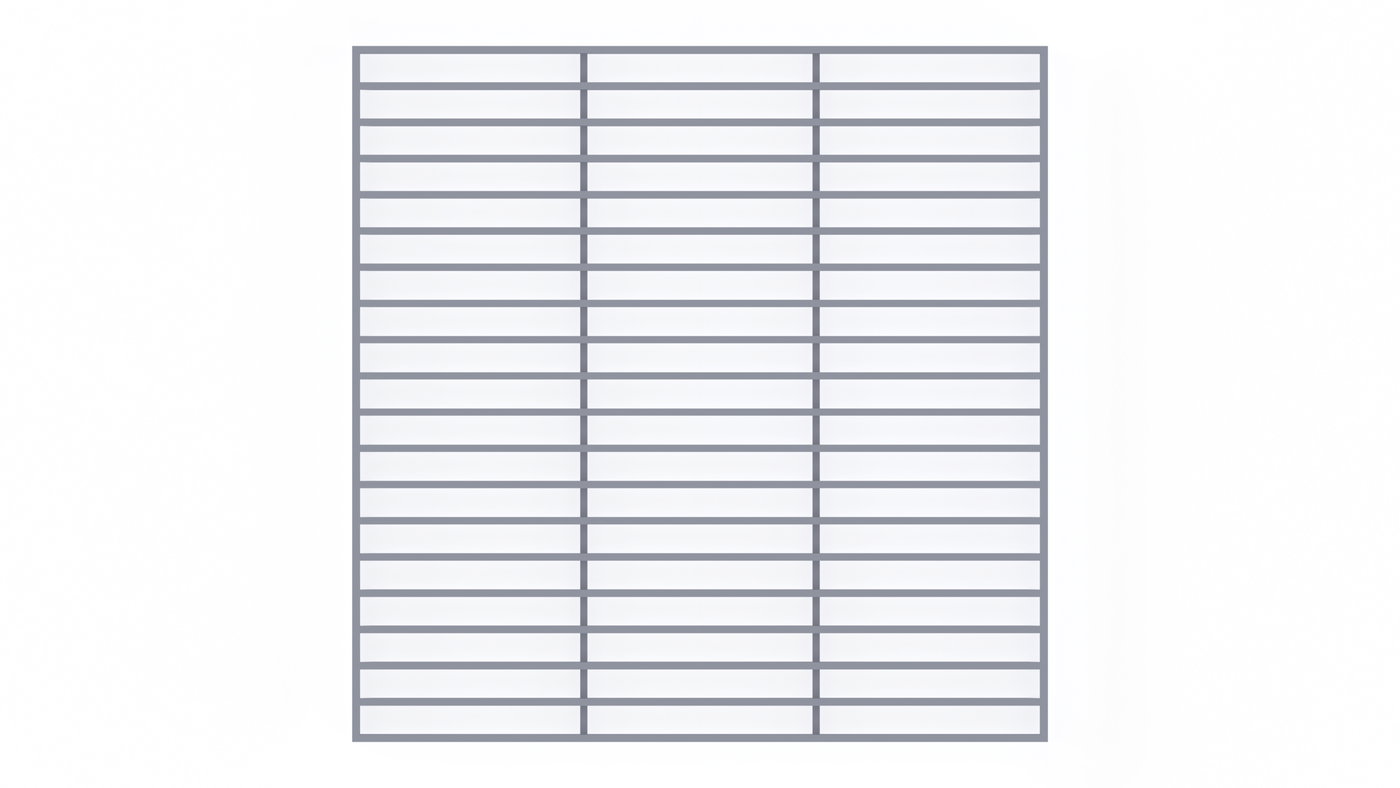

Top view

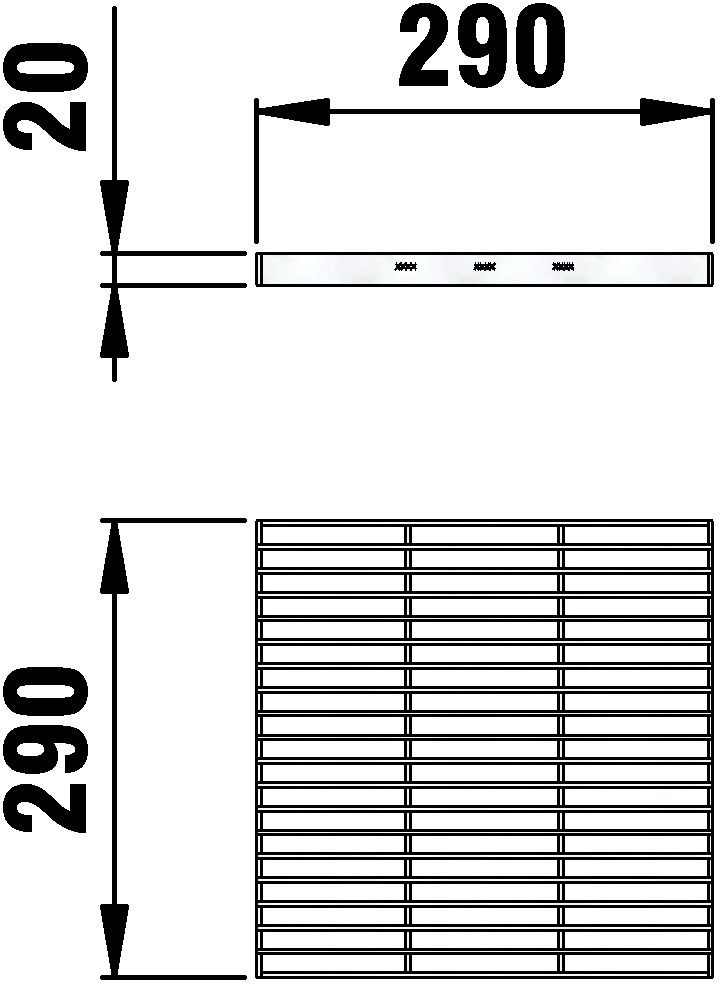

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65379
Length
290 mm
Width
290 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.05 kg
Material
Stainless steel 1.4301
Intake cross-section
2108.0 cm²/m
Inlet opening
0
Material grating
Stainless steel 1.4301
Sales text
Longitudinal grating bar distance 12 mm, stainless steel, bar thickness 3 mm, cl. A 15, DACHFIX STEEL Sump unit 300 / DACHFIX POINT Gully 30/30
Product description
DACHFIX STEEL Sump unit 300 / DACHFIX POINT Gully 30/30 - Longitudinal grating, bar distance 12 mm, bar thickness 3 mm, made of stainless steel CNS 1.4301, load class A 15, optionally screwable, LxW 290x290 mm, item no. 65379
Packaging unit
300
