Article No. 13210
RECYFIX HICAP F 3000 up to load class D 400
Type 3200, ductile iron slot 6 mm, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

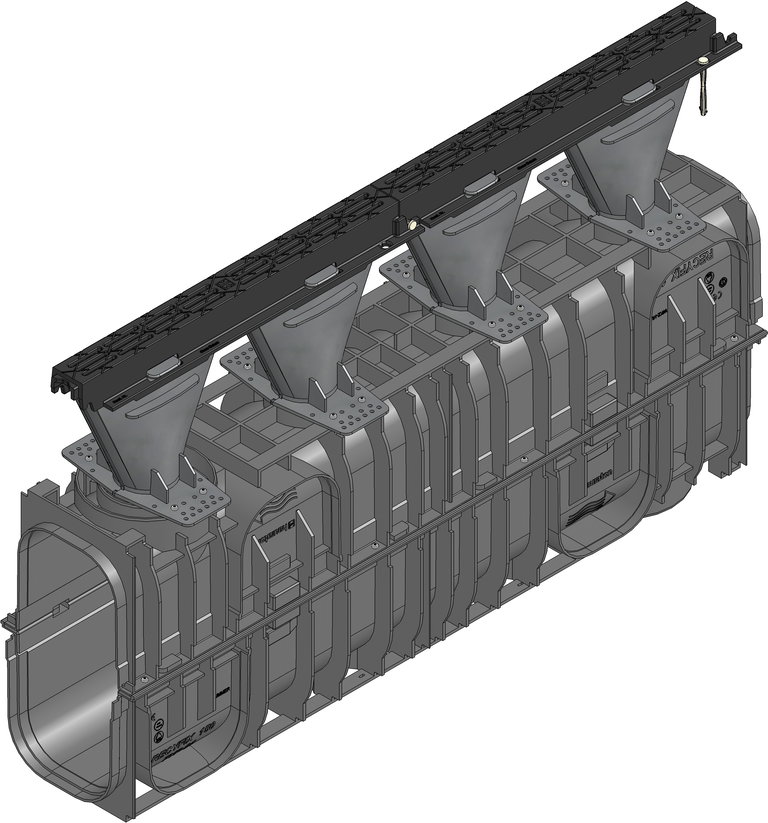

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
13210
Length
1000 mm
Width
210 mm
Height
580 mm
Weight
12.50 kg
Material
Ductile iron GJS 500-7, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
129.0 cm²/m
Nominal size
3000
Internal channel cross-section
460 cm²
Fall
-
Height funnel
200 mm
Inlet opening
51
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 3200 with ductile iron slot 6 mm, KTL coated, cl. D 400, 1 m
Product description
RECYFIX HICAP F 3200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 6 mm, KTL coated, loading capacity from A 15 up to D 400, length 1000 mm, item no. 13210
Packaging unit
15
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400 - F 900
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement / large-size slab class D 400
Asphalt class E 600 - F 900
Concrete class E 600 - F 900
Pavement / large-size slab class E 600 - F 900
Concrete class D 400 - F 900
Concrete class A 15 - F 900
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Concrete class A 15 - E 600
Pavement / large-size slab class D 400 - E 600
Asphalt class F 900
Concrete class F 900
Pavement / large-size slab class F 900
