Article No. 36000
RECYFIX MONOTEC 100, up to class D 400
Type 230, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

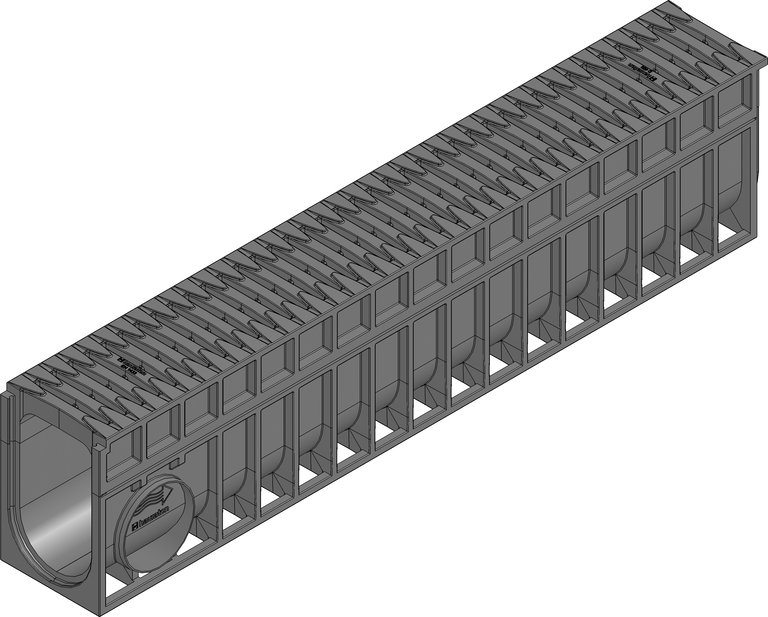

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
36000
Length
1000 mm
Width
150 mm
Height
230 mm
Weight
8.21 kg
Material
reinforced Polypropylene
Height of angle housing
28 mm
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
190 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX MONOTEC 100 type 230 with permanently integrated grating in FIBRETEC design SW 110/9 mm, 1 m
Product description
RECYFIX MONOTEC 100 type 230 # monolithic channel consists of channel body with permanently integrated cover in FIBRETEC design SW 10 mm, made of modified PP, black, according to EN 1433, with lateral connection possibility DN/OD 110, loading capacity from A 15 up to D 400, L/W/H 1000x150x230 mm, item no. 36000
Packaging unit
38
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - D 400
Asphalt class C 250 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Installation instructions
