Article No. 48771

RECYFIX NC 100, class D 400

Type 01 with ductile iron grating, black, SW 104/10 mm, 8-times bolted, 1,0 m

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Product image

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Drawing (JPG)

Drawing (JPG)

Technical information and metrics

Article No.
48771
Width
160 mm
Height
150 mm
Weight
10,67 kg
Intake cross-section
427 cm²/m
Nominal sizes
100
Internal channel cross-section
92 cm²
Material
Ductile iron GJS 500-7 ,recycled, modified Polypropylene ,Steel black galvanised
Packaging unit
49
Regulations
EN 1433, DIN 19580
Type according to DIN EN 1433
M
Product description

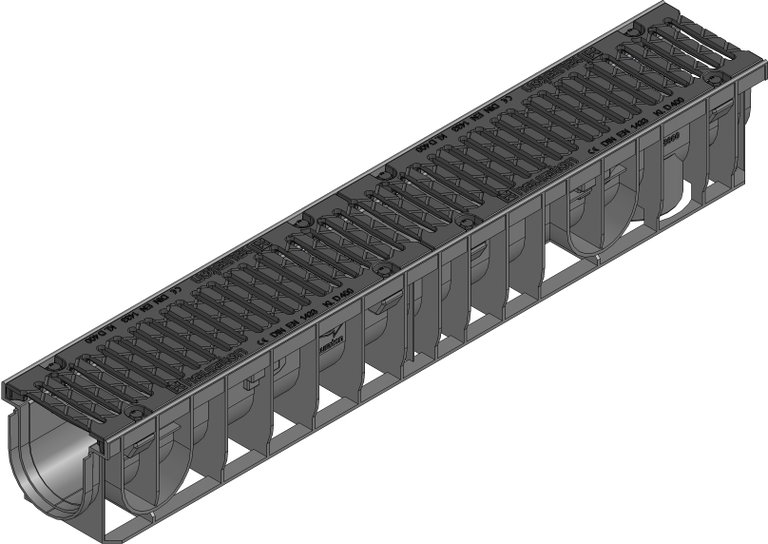

RECYFIX NC 100 type 01 - channel made of modified PP, with integrated angle housing, according to EN 1433, with vertical connection possibility DN/OD 110, ductile iron grating consists of ductile graphite iron EN-GJS, SW 104/10 mm, black , with horizontal thrusts resistance, eightfold locking, loading class A 15 - D 400, not for use across the carriageway of highways or motorways in moving traffic, L/W/H 1000x160x150mm, item no. 48771
Sales text
RECYFIX NC 100 type 01 with ductile iron grating, SW 104/10 mm, black, cl. D 400
