Article No. 48871

RECYFIX NC 150, class D 400

Type 01 with ductile iron grating, black, SW 154/18 mm, 8-fold bolted, 1,0 m

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Documents have been added to your personal documents. Go to my documents

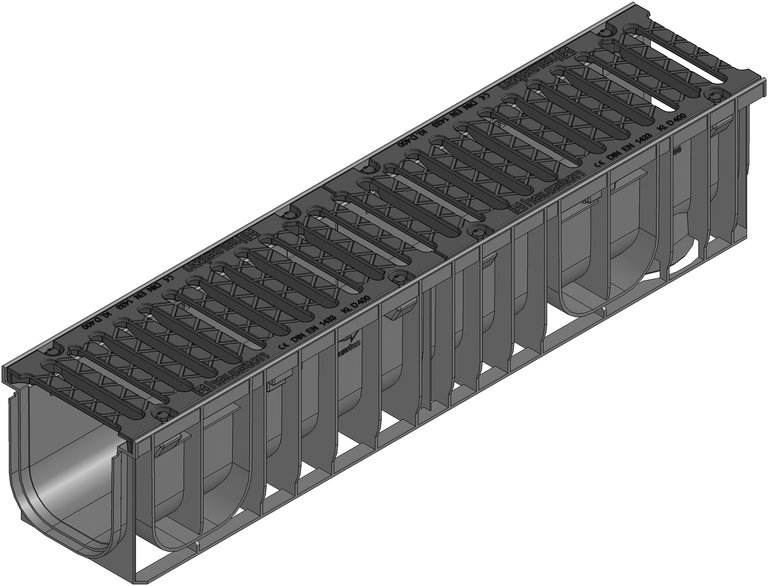

Product image

Product image

Documents have been added to your personal documents. Go to my documents

Technical drawing

Drawing (CAD)

Drawing (CAD)

Documents have been added to your personal documents. Go to my documents

Drawing (JPG)

Drawing (JPG)

Documents have been added to your personal documents. Go to my documents

Technical information and metrics

Article No.
48871
Width
212 mm
Height
210
Weight
15,73 kg
Intake cross-section
702 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Material
Ductile iron GJS 500-7 ,recycled, modified Polypropylene ,Steel black galvanised
Packaging unit
25
Regulations
EN 1433, DIN 19580
Type according to DIN EN 1433
M
Product description
RECYFIX NC 150 Type 01 - channel made of modified PP with integrated angle housing, according EN 1433, with vertical connection possibility DN/OD 110/160, with ductile iron grating made of of ductile graphite iron EN-GJS, SW 154/18 mm, black, with horizontal thrust resistance and eightfold locking, loading capacity from A 15 - D 400, not for use across the carriageway of highways and motorways, L/W/H 1000 x 212 x 210 mm, item no. 48871
Sales text
RECYFIX NC 150 type 01 with ductile iron grating, SW 154/18 mm, black, cl. D 400

Declaration of Performance

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Tender texts

Installation instructions

Installation instructions

Documents have been added to your personal documents. Go to my documents

Installation example

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class D 400 - E 600

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class D 400 - E 600

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class D 400 - E 600

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250 - D 400

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class C 250 - D 400

Installation example
