Article No. 49873

RECYFIX NC 300, class D 400

Type 010 with ductile iron grating SW 2 x 142/18 mm, black, 8-fold bolted, 1,0 m

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Documents have been added to your personal documents. Go to my documents

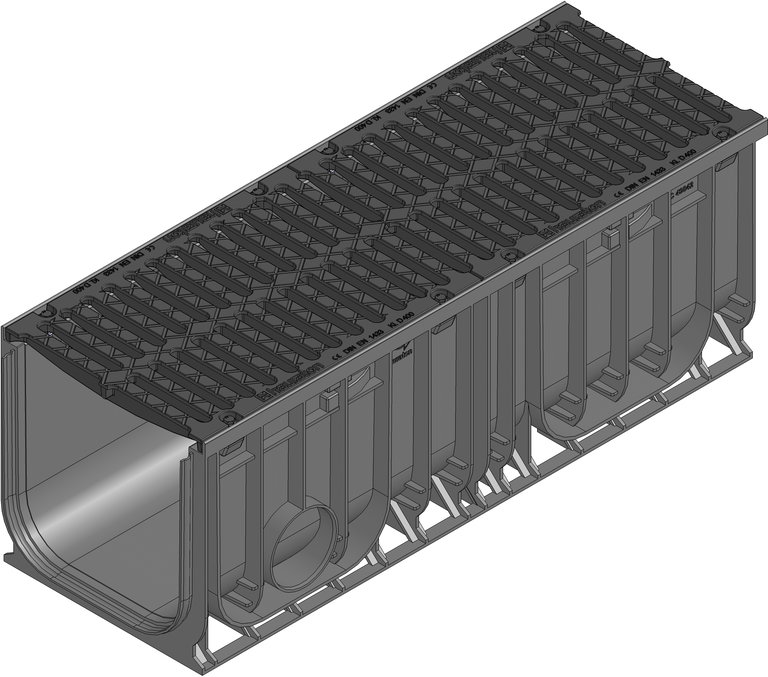

Product image

Product image

Documents have been added to your personal documents. Go to my documents

Technical drawing

Drawing (CAD)

Drawing (CAD)

Documents have been added to your personal documents. Go to my documents

Drawing (JPG)

Drawing (JPG)

Documents have been added to your personal documents. Go to my documents

Technical information and metrics

Article No.
49873
Width
362 mm
Height
360
Weight
34,65 kg
Intake cross-section
1293 cm²/m
Nominal size
300
Internal channel cross-section
873 cm²
Material
Ductile iron GJS 500-7 ,recycled, modified Polypropylene ,Steel black galvanised
Packaging unit
9
Regulations
EN 1433, DIN 19580
Type according to DIN EN 1433
M
Product description
RECYFIX NC 300 type 010 - channel made of modified PP, with integrated angle housing, according to EN 1433, with lateral (DN/OD 125) and vertical (DN/OD 160/200) connection possibility, with ductile iron grating consists of ductile graphite iron EN-GJS, SW 2 x 142/18 mm, black, with horizontal thrust resistance, eightfold locking, loading class A 15 -D 400, not for use across the carriageway of highways or motorways in moving traffic, L/W/H 1000x362x360 mm, item no. 49873
Sales text
RECYFIX NC 300 Type 010 with ductile iron grating, SW 2 x 142/18 mm, black, cl. D 400

Declaration of Performance

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Tender texts

Installation instructions

Installation instructions

Documents have been added to your personal documents. Go to my documents

Installation example

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents

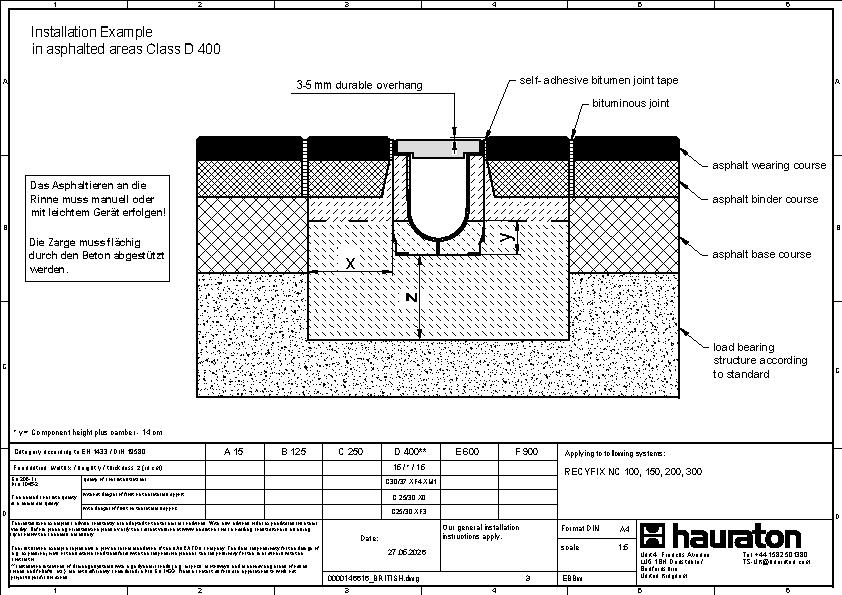

Asphalt class D 400 - E 600

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class D 400 - E 600

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class D 400 - E 600

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250 - D 400

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class C 250 - D 400

Installation example
