Article No. 41441

RECYFIX PLUS 100, class A 15

Type 01 with perforated grating "Elegance", galvanised, locked, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

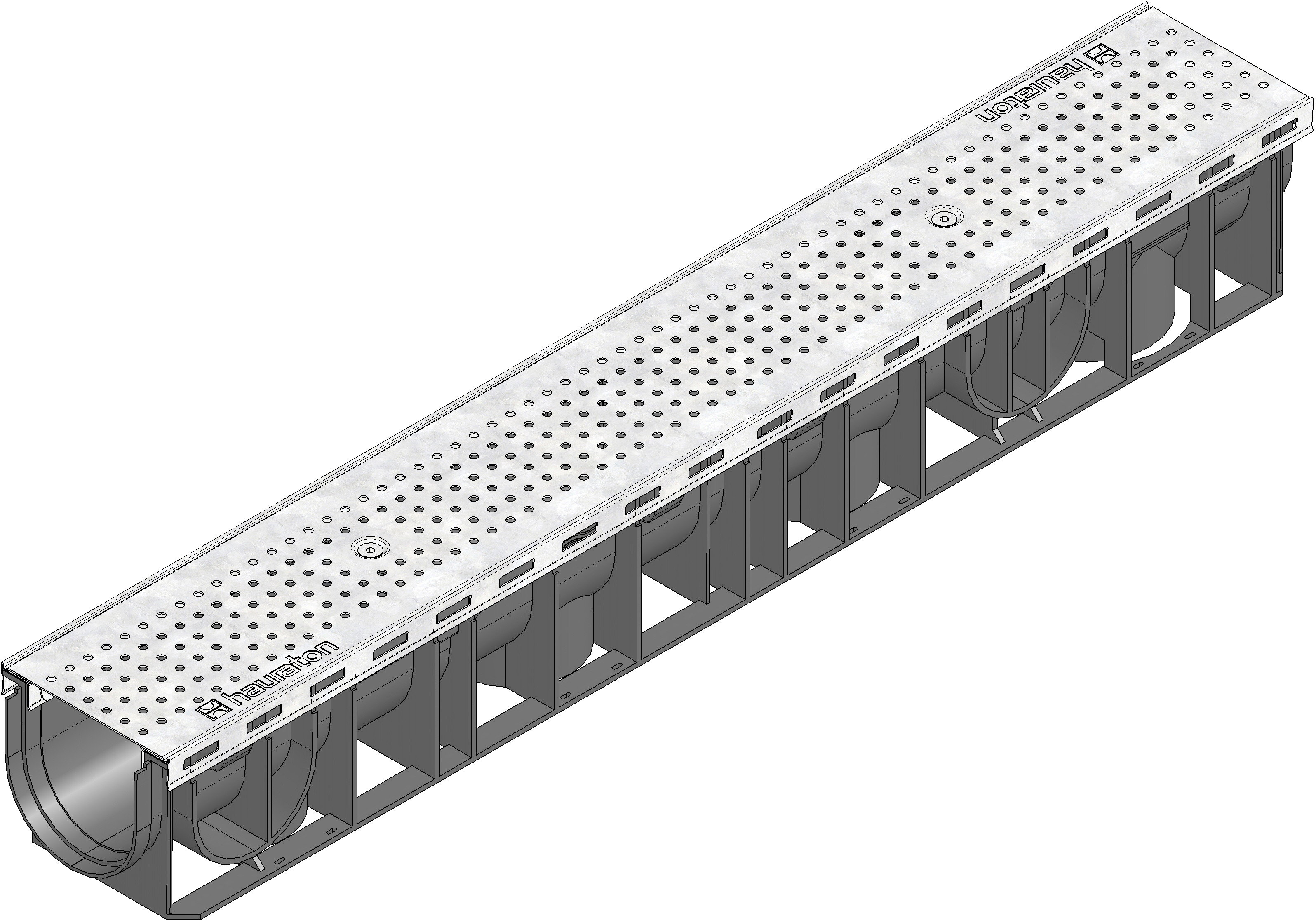

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
41441
Length
1000 mm
Width
147 mm
Height
135 mm
Einlegetiefe
3 mm
Weight
4.91 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 Channel type 01 with edge frames made of galvanised steel and perforated grating Ø 6 mm, galvanised, cl. A 15, locked, 1 m
Product description
RECYFIX PLUS 100 type 01 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN/OD 110, with perforated grating Ø 6 mm, made of galvanised steel, with locking, load class A 15 according to EN 1433, LxWxH 1000x147x135 mm, item no. 41441
Packaging unit
49
