Article No. 41077

RECYFIX PLUS 150, class B 125

Type 01 with mesh grating MW 30/10 mm, galvanised, locked

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Documents have been added to your personal documents. Go to my documents

Top view

Top view

Documents have been added to your personal documents. Go to my documents

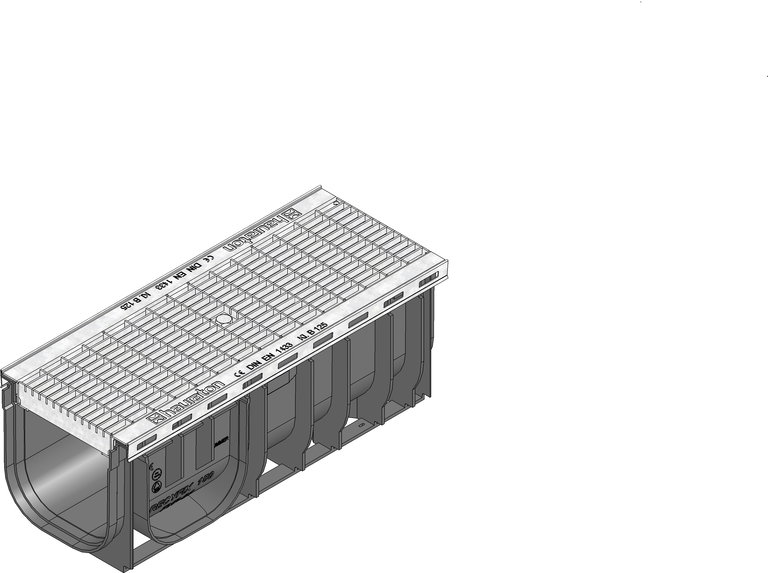

Product image

Product image

Documents have been added to your personal documents. Go to my documents

Technical drawing

Drawing (JPG)

Drawing (JPG)

Documents have been added to your personal documents. Go to my documents

Drawing (CAD)

Drawing (CAD)

Documents have been added to your personal documents. Go to my documents

Technical information and metrics

Article No.
41077
Width
202 mm
Height
193
Weight
9,85 kg
Intake cross-section
1098 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Material
Galvanised steel ,hot-dip galvanised steel ,recycled, modified Polypropylene, strip galvanized steel ,RECYFIX Material (recycled PA)
Packaging unit
25
Regulations
EN 1433, AS 4586, DIN 19580
Type according to DIN EN 1433
M
Product description
RECYFIX PLUS 150 type 01 - channel made of modified PP, with integrated metal profile for the grating support, galvanised, with vertical connection possibility DN/OD 110/160, with mesh grating, mesh width 30/10, galvanised, locked, with locking device, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x202x193 mm, item no. 41077
Sales text
RECYFIX PLUS 150 channel type 01 with mesh grating, MW 30/10, galvanised, cl. B 125, locked, 1 m

Declaration of Performance

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Tender texts

Installation instructions

Installation instructions

Documents have been added to your personal documents. Go to my documents

Installation example

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete screed class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250
