Article No. 42670

RECYFIX PLUS 150, class C 250

Type 01 with ductile iron grating SW 130/6 mm, black, stainless steel, locked, 0.5 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

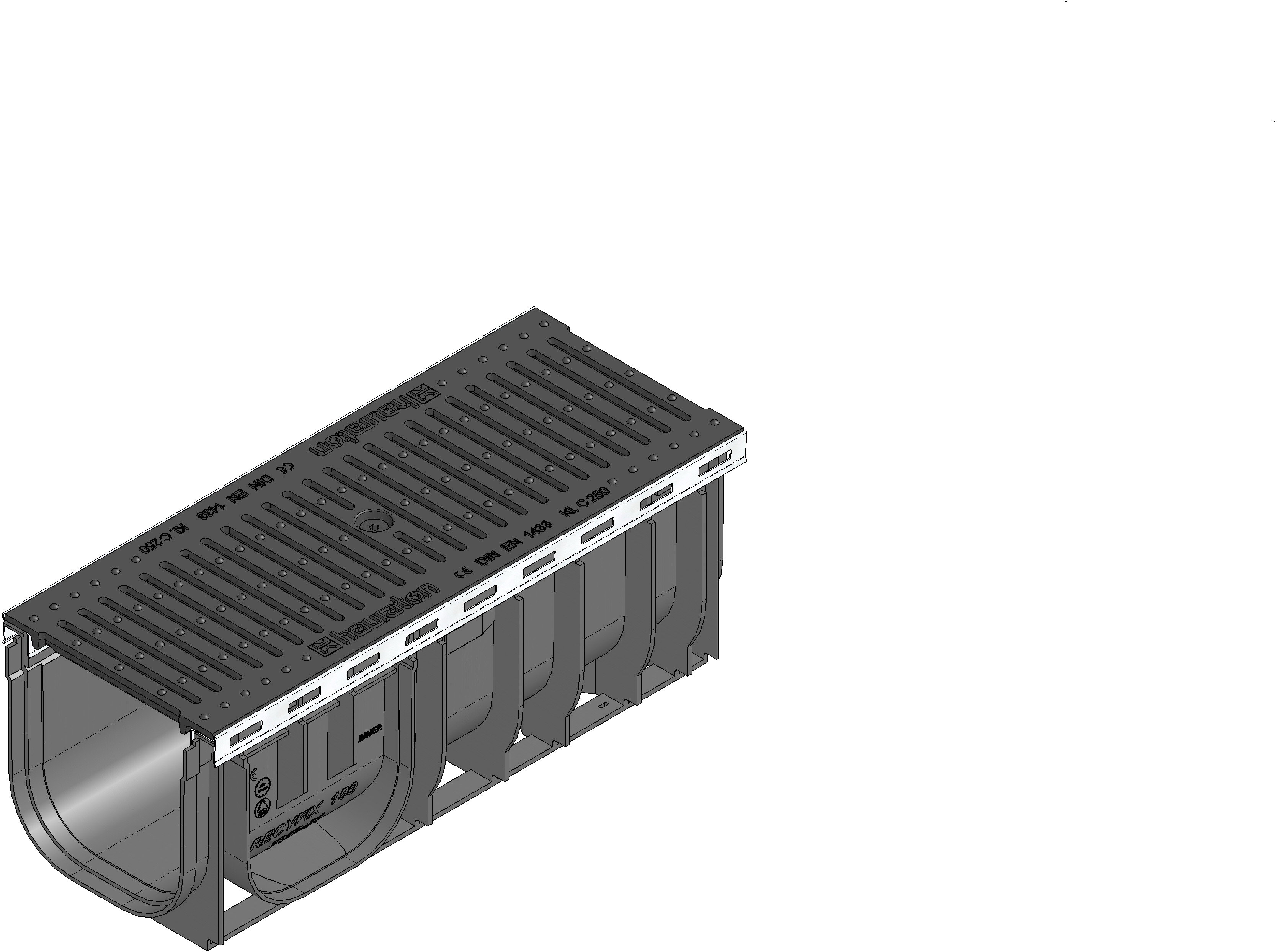

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
42670
Length
500 mm
Width
202 mm
Height
193 mm
Einlegetiefe
6 mm
Weight
7.27 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, reinforced Polyamide, Stainless steel 1.4301, Steel black galvanised
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
Stainless steel 1.4301
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 150 Channel type 01 with edge frames made of stainless steel and ductile iron grating SW 130/6 mm, black, cl. C 250, locked, 0.5 m
Product description
RECYFIX PLUS 150 type 01 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with ductile iron grating SW 130/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x202x193 mm, item no. 42670
Packaging unit
50
