Article No. 41078
RECYFIX PLUS 150, class D 400
Type 01 with ductile iron grating, SW 130/6 mm, black, locked, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

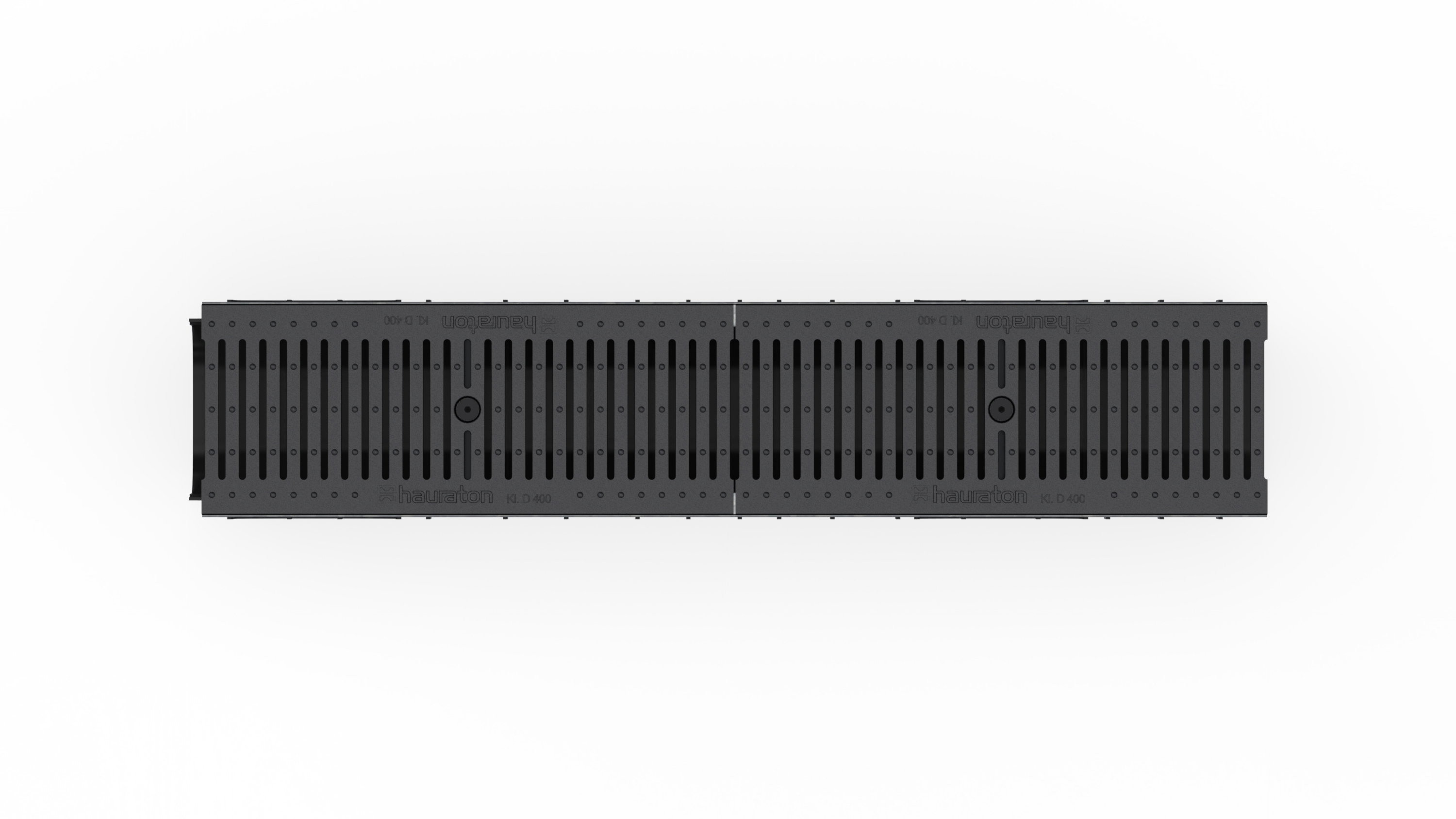

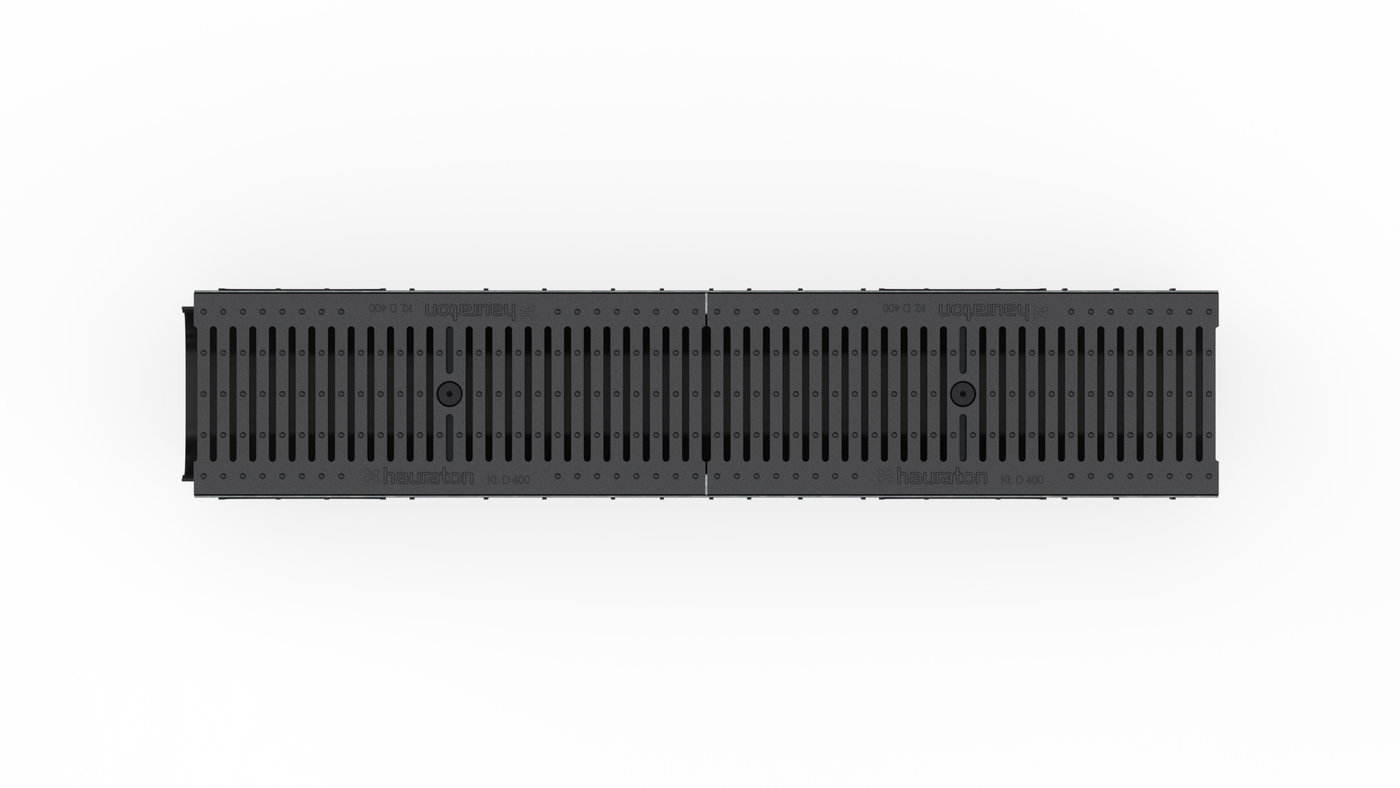

Top view

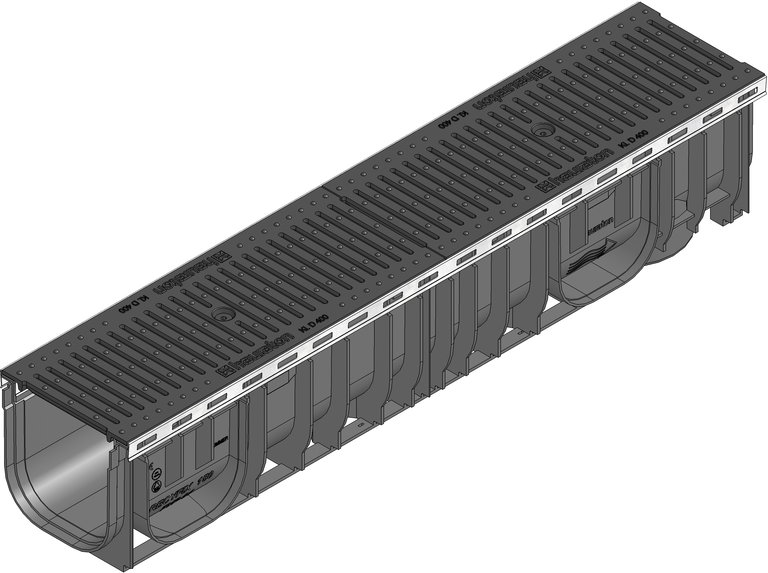

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41078
Length
1000 mm
Width
202 mm
Height
193 mm
Einlegetiefe
6 mm
Weight
14.20 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised, strip galvanized steel
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PLUS 150 Channel type 01 with edge frames made of galvanised steel and ductile iron grating SW 130/6 mm, black, cl. D 400, locked, 1 m
Product description
RECYFIX PLUS 150 type 01 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN/OD 110/160, with ductile iron grating SW 130/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x202x193 mm, item no. 41078
Packaging unit
25
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
