Article No. 42788
RECYFIX PLUS 200, class C 250
Type 010 with ductile iron grating, SW 180/6 mm, black, stainless steel, locked, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

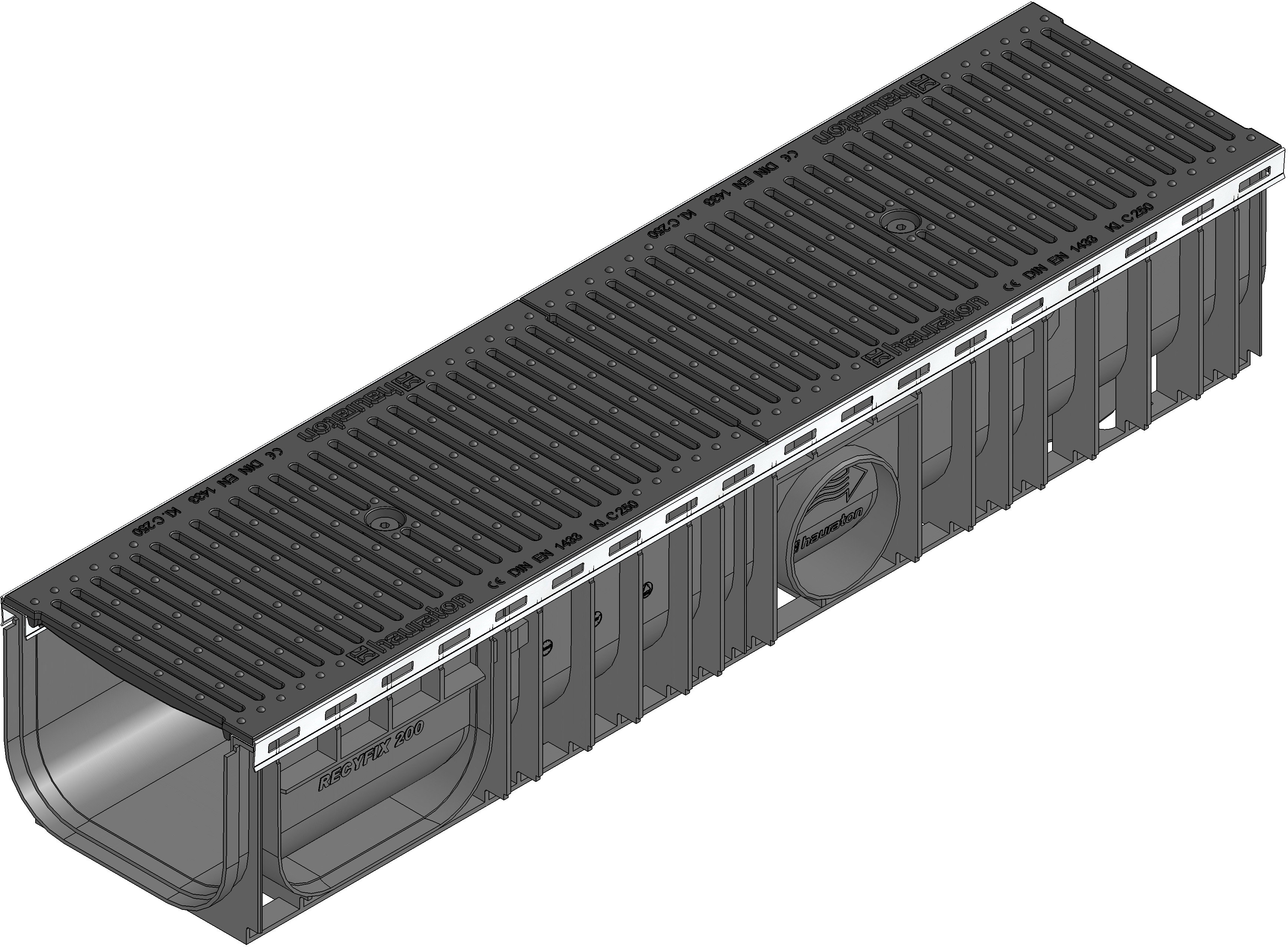

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
42788
Length
1000 mm
Width
247 mm
Height
186 mm
Einlegetiefe
6 mm
Weight
18.90 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Stainless steel 1.4301, Steel black galvanised
Intake cross-section
557.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
Stainless steel 1.4301
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 010 with edge frames made of stainless steel and ductile iron grating SW 180/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 200 type 010 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with lateral (DN/OD 110) and vertical connection possibility (DN/OD 110/160), with ductile iron grating SW 180/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x247x186 mm, item no. 42788
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
