Article No. 41970

RECYFIX PLUS 300, class C 250

Type 01 with GUGI-ductile iron mesh grating, MW 15/25 mm, locked, 1,0 m

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Documents have been added to your personal documents. Go to my documents

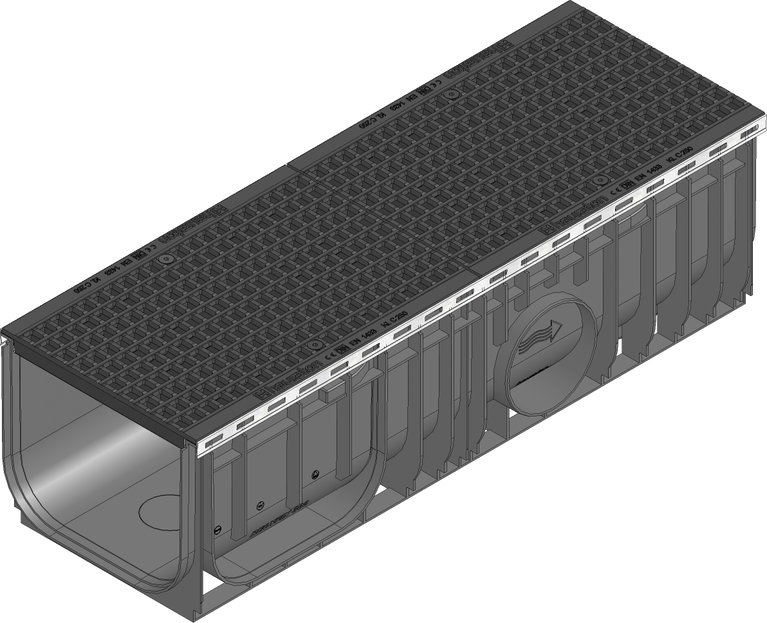

Product image

Product image

Documents have been added to your personal documents. Go to my documents

Technical drawing

Drawing (CAD)

Drawing (CAD)

Documents have been added to your personal documents. Go to my documents

Drawing (JPG)

Drawing (JPG)

Documents have been added to your personal documents. Go to my documents

Top view

Top view

Documents have been added to your personal documents. Go to my documents

Technical information and metrics

Article No.
41970
Width
347 mm
Height
291
Weight
31,30 kg
Intake cross-section
1325 cm²/m
Nominal size
300
Internal channel cross-section
730 cm²
Material
Ductile iron GJS 500-7 ,recycled, modified Polypropylene, strip galvanized steel ,Steel black galvanised ,strip galvanized steel
Packaging unit
9
Regulations
EN 1433, DIN 19580
Type according to DIN EN 1433
M
Product description
RECYFIX PLUS 300 type 01 - channel made of modified PP, with integrated metal profile for the grating support, galvanised, with lateral (DN/OD 160) and vertical (DN/OD 160/200) connection possibility, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15/25, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x347x291 mm, item no. 41970
Sales text
RECYFIX PLUS 300 channel type 01 with GUGI-ductile iron mesh grating 15/25, cl. C 250, locked, 1 m

Declaration of Performance

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Tender texts

Installation instructions

Installation instructions

Documents have been added to your personal documents. Go to my documents

Installation example

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete screed class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250
