Article No. 47036
RECYFIX PRO 100, class B 125
Type 01, with GUGI-Grating made of PA-GF, MW 15/25 mm, black, locked, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

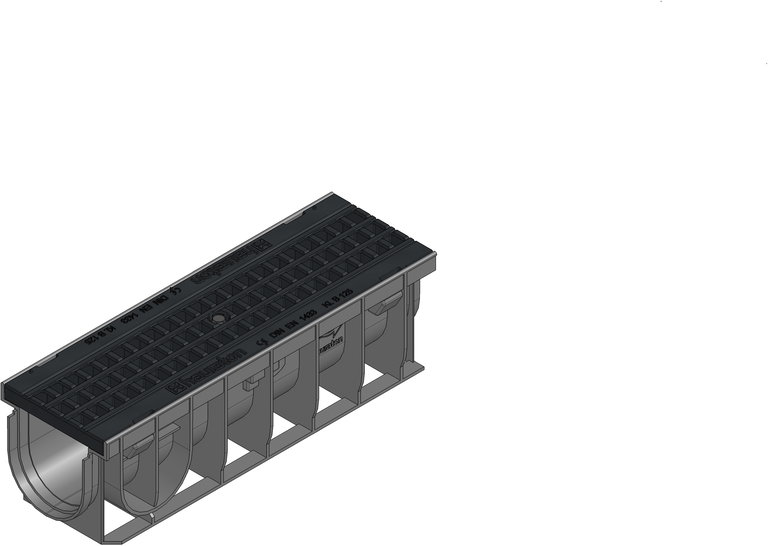

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47036
Length
500 mm
Width
160 mm
Height
150 mm
Weight
2.07 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX PRO 100 Type 01 Channel with GUGI-Grating made of PA-GF, MW 15/25, black, cl. B 125, length 0,5 m, locked
Product description
RECYFIX PRO 100 type 01 - channel made of modified PP, with integrated angle housing, with GUGI-mesh grating mesh width 15/25, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - B 125 according EN 1433, L/W/H 500x160x150 mm, item no. 47036
Packaging unit
98
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
