Article No. 48600
RECYFIX PRO 100
Type 01, with integrated PP angle housing, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

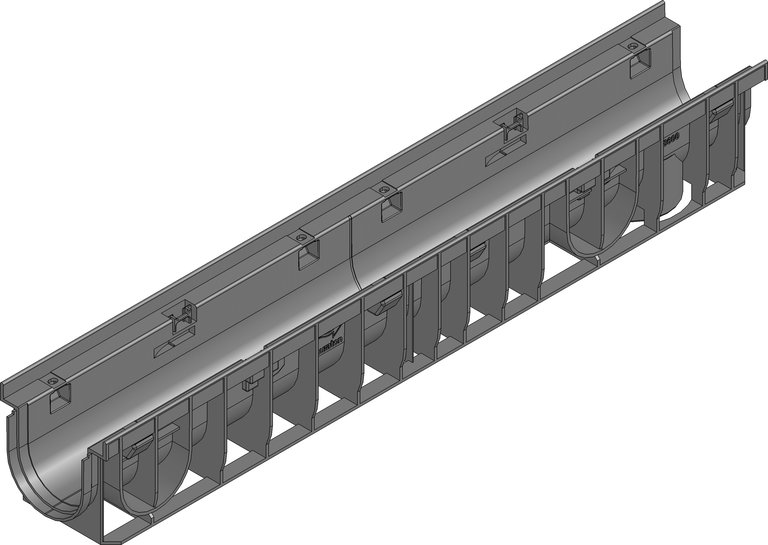

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
48600
Length
1000 mm
Width
160 mm
Height
150 mm
Weight
2.16 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
92 cm²
Fall
-
Fixing type
Loose blatant, Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Type 01 Channel
Product description
RECYFIX PRO 100 type 01 - channel body made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x160x150 mm, item no. 48600
Packaging unit
70
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
