Article No. 47240
RECYFIX PRO 200, class C 250
Type 010 with G-TEC Ductile iron grating, SW 9 mm, KTL-coated, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view
Technical drawing
Drawing
Drawing (CAD)

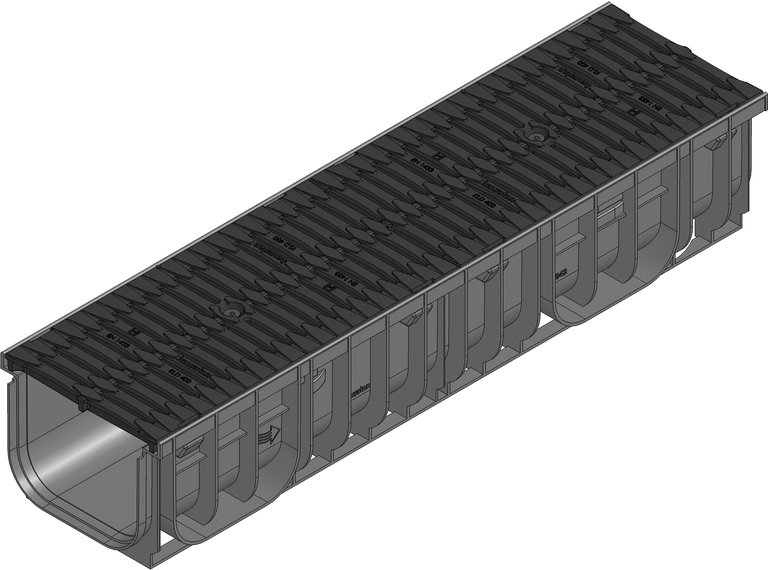

Product image
Data Sheet
Technical information and metrics
Article No.
47240
Length
1000 mm
Width
262 mm
Height
200 mm
Weight
20.23 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
596.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PRO 200 Type 010 with G-TEC grating, KTL-coated, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 200 type 010 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110/160, with G-TEC ductile iron grating, slot width 9 mm, KTL-coated, CE-compliant, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x262x200 mm, item no. 47240
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Cemented floor class A 15 - C 250
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
