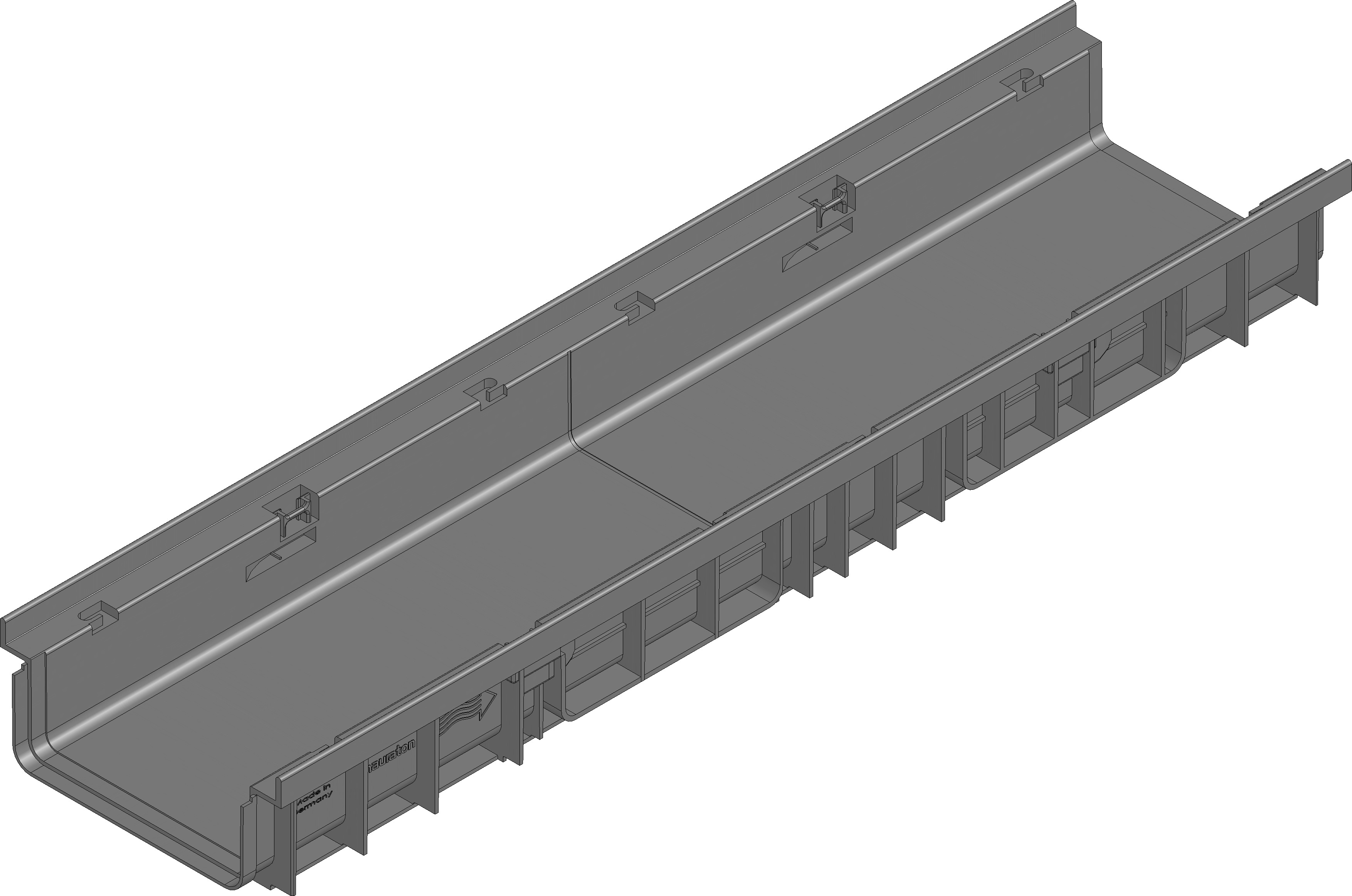

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47230
Length
1000 mm
Width
262 mm
Height
115 mm
Weight
2.24 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
200
Internal channel cross-section
150 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 Channel body type 115 with integrated edge frames, 1 m
Product description
RECYFIX PRO 200 type 115 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75/110, load class A 15 - D 400 according to EN 1433, LxWxH 1000x262x115 mm, item no. 47230
Packaging unit
64
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
