Article No. 49744

RECYFIX PRO 300, class C 250

Type 010 with G-TEC Ductile iron grating SW 9 mm, KTL-coated, locked, 1,0 m

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Documents have been added to your personal documents. Go to my documents

Technical drawing

Drawing (JPG)

Drawing (JPG)

Documents have been added to your personal documents. Go to my documents

Drawing (CAD)

Drawing (CAD)

Documents have been added to your personal documents. Go to my documents

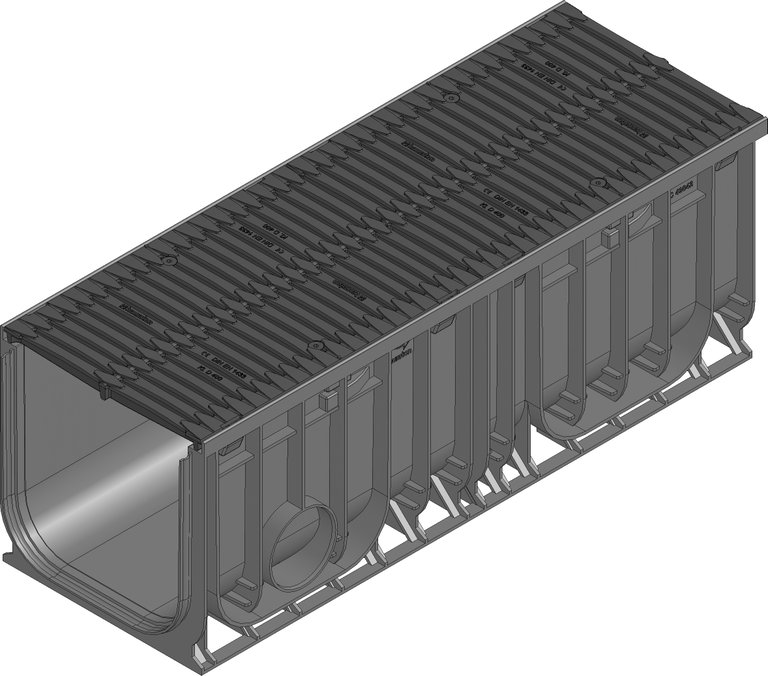

Product image

Product image

Documents have been added to your personal documents. Go to my documents

Top view

Top view

Documents have been added to your personal documents. Go to my documents

Technical information and metrics

Article No.
49744
Width
362 mm
Height
360
Weight
38,10 kg
Intake cross-section
960 cm²/m
Nominal size
300
Internal channel cross-section
873 cm²
Material
Ductile iron GJS 500-7 with KTL-coating ,recycled, modified Polypropylene ,Steel black galvanised ,strip galvanized steel
Packaging unit
9
Regulations
EN 1433, AS 4586, DIN 19580
Type according to DIN EN 1433
M
Product description
RECYFIX PRO 300 type 010 - channel made of modified PP, with integrated angle housing, with vertical (DN/OD 160/200) connection possibility, with G-Tec ductile iron grating, slot width 9 mm, KTL-coated, with horizontal thrust resistance and locking device, CE-compliant, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x362x360 mm, item no. 49744
Sales text
RECYFIX PRO 300 Channel Type 010 with G-Tec grating, KTL coated, Cl. C 250, Length 1 m, locked

Declaration of Performance

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Tender texts

Installation instructions

Installation instructions

Documents have been added to your personal documents. Go to my documents

Installation example

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Installation example

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete screed class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class D 400
