Article No. 49745
RECYFIX PRO 300, class D 400
Type 010 with G-TEC Ductile iron grating SW 9 mm, KTL-coated, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view
Technical drawing
Drawing
Drawing (CAD)

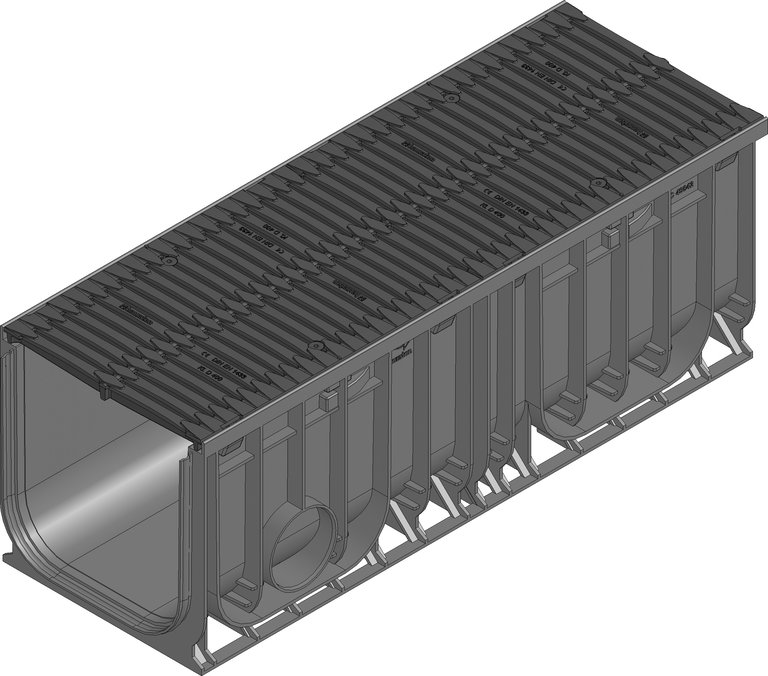

Product image
Data Sheet
Technical information and metrics
Article No.
49745
Length
1000 mm
Width
362 mm
Height
360 mm
Weight
38.10 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
960.0 cm²/m
Nominal size
300
Internal channel cross-section
873 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PRO 300 Channel Type 010 with G-Tec grating, KTL coated, Cl. D 400, Length 1 m, locked
Product description
RECYFIX PRO 300 type 010 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 160/200, with G-TEC ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 2x 141/9 mm, KTL-coated, with horizontal thrust resistance and locking, CE-compliant, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x362x360 mm, item no. 49745
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
