Article No. 40232
RECYFIX STANDARD 100, trafficable
Type 01 with mesh grating MW 30/10 mm, locked, 1,0 m
Questions?
Top view
Technical drawing
Drawing
Drawing (CAD)

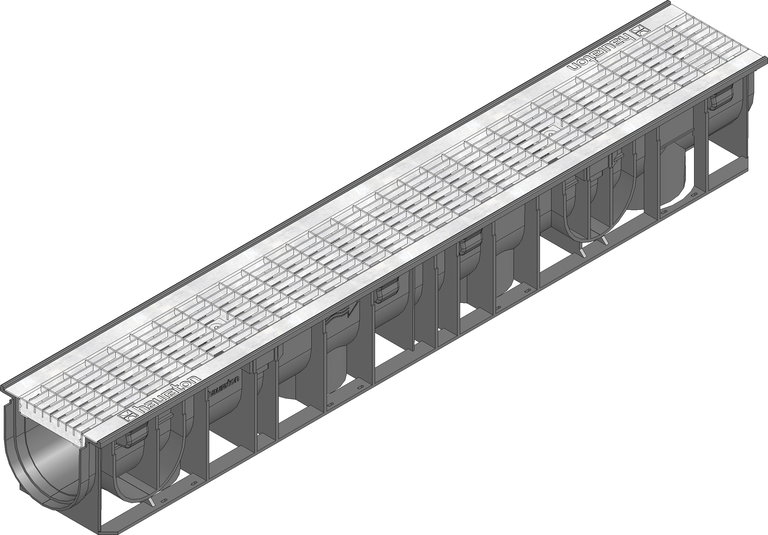

Product image
Data Sheet
Technical information and metrics
Article No.
40232
Length
1000 mm
Width
150 mm
Height
134 mm
Weight
4.60 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
760.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel Type 01 with mesh grating MW 30/10, galvanised, trafficable, with locking device
Product description
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with mesh grating, mesh width 30/10 and locking device, trafficable, galvanised, locked, L/W/H 1000x150x134 mm, item no. 40232
Packaging unit
49
