Article No. 40685

RECYFIX STANDARD 200, class B 125

Type 010 with mesh grating MW 30/10 mm, galvanised, locked, 1,0 m

Delivery time on request
Project request Tender texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product data sheet

Product data sheet

Documents have been added to your personal documents. Go to my documents

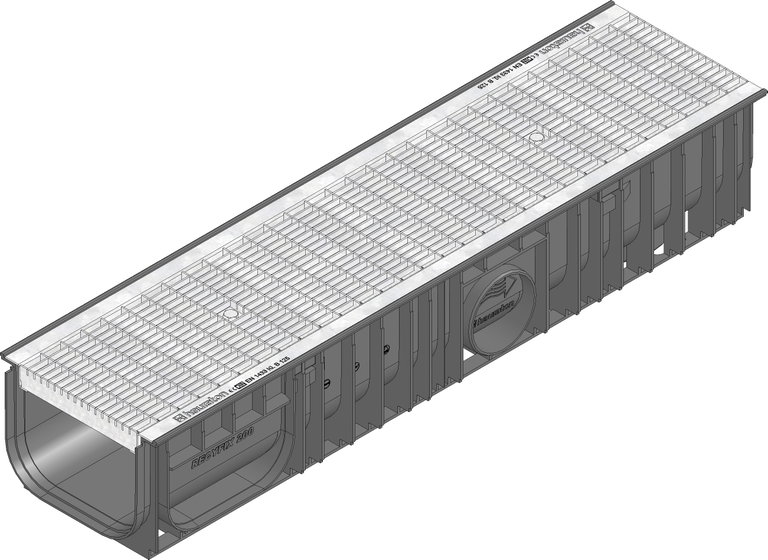

Product image

Product image

Documents have been added to your personal documents. Go to my documents

Technical drawing

Drawing (CAD)

Drawing (CAD)

Documents have been added to your personal documents. Go to my documents

Drawing (JPG)

Drawing (JPG)

Documents have been added to your personal documents. Go to my documents

Top view

Top view

Documents have been added to your personal documents. Go to my documents

Technical information and metrics

Article No.
40685
Width
256 mm
Height
185
Weight
11,20 kg
Intake cross-section
1442 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Material
Galvanised steel ,hot-dip galvanised steel ,recycled, modified Polypropylene
Packaging unit
20
Regulations
EN 1433, DIN 19580
Type according to DIN EN 1433
M
Product description
RECYFIX STANDARD 200 type 010 - channel made of modified PP, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with mesh grating, mesh width 30/10, with locking device, galvanised, loading capacity from A 15 - B 125, L/W/H 1000x256x185 mm, item no. 40685
Sales text
RECYFIX STANDARD 200 channel type 010 with mesh grating MW 30/10, class B 125, with locking device, 1 m

Declaration of Performance

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Declaration of Performance

Documents have been added to your personal documents. Go to my documents

Tender texts

Installation instructions

Installation instructions

Documents have been added to your personal documents. Go to my documents

Installation example

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete screed class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class A 15 - B 125

Installation example

Documents have been added to your personal documents. Go to my documents

Concrete class A 15 - C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Asphalt class C 250

Installation example

Documents have been added to your personal documents. Go to my documents

Pavement class C250

Installation example

Documents have been added to your personal documents. Go to my documents
