Article No. 40870
RECYFIX STANDARD 300, class C 250
Type 01 with GUGI-Ductile iron mesh grating, MW 15/25 mm, black, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view

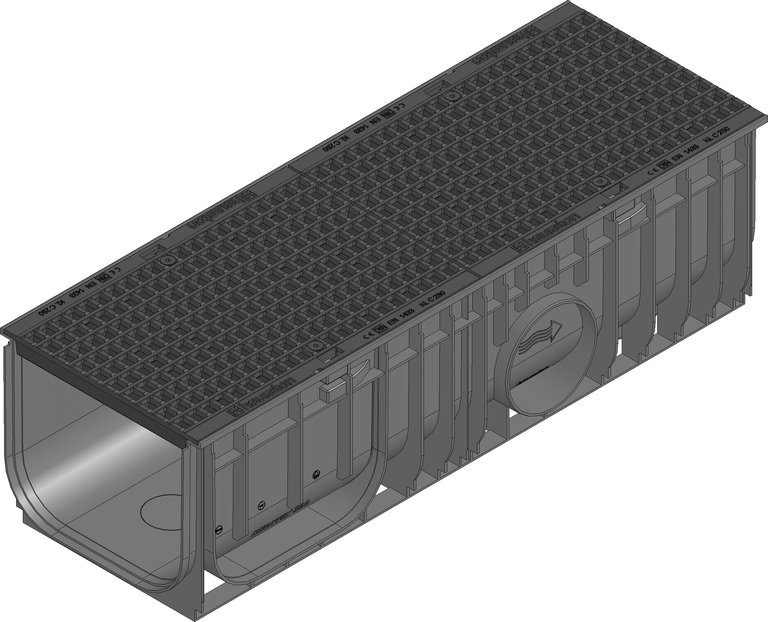

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40870
Length
1000 mm
Width
352 mm
Height
292 mm
Weight
30.44 kg
Material
Ductile iron GJS 500-7, PE-HD, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1322.0 cm²/m
Nominal size
300
Internal channel cross-section
725 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 300 channel type 01 with GUGI-ductile iron mesh grating, MW 15/25, class C 250, black, with locking device
Product description
RECYFIX STANDARD 300 type 01 - channel made of modified PP, according to EN 1433, with lateral (DN/OD 160) and vertical (DN/OD 160/200) connection possibility, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15/25 mm, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250, L/W/H 1000x352x292 mm, item no. 40870
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
