Article No. 32059
SERVICE CHANNELS FASERFIX KS 150 made of fibre-reinforced concrete with 20 mm angle housing, class E 600
Ductile iron grating, closed, KTL-coated, black, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

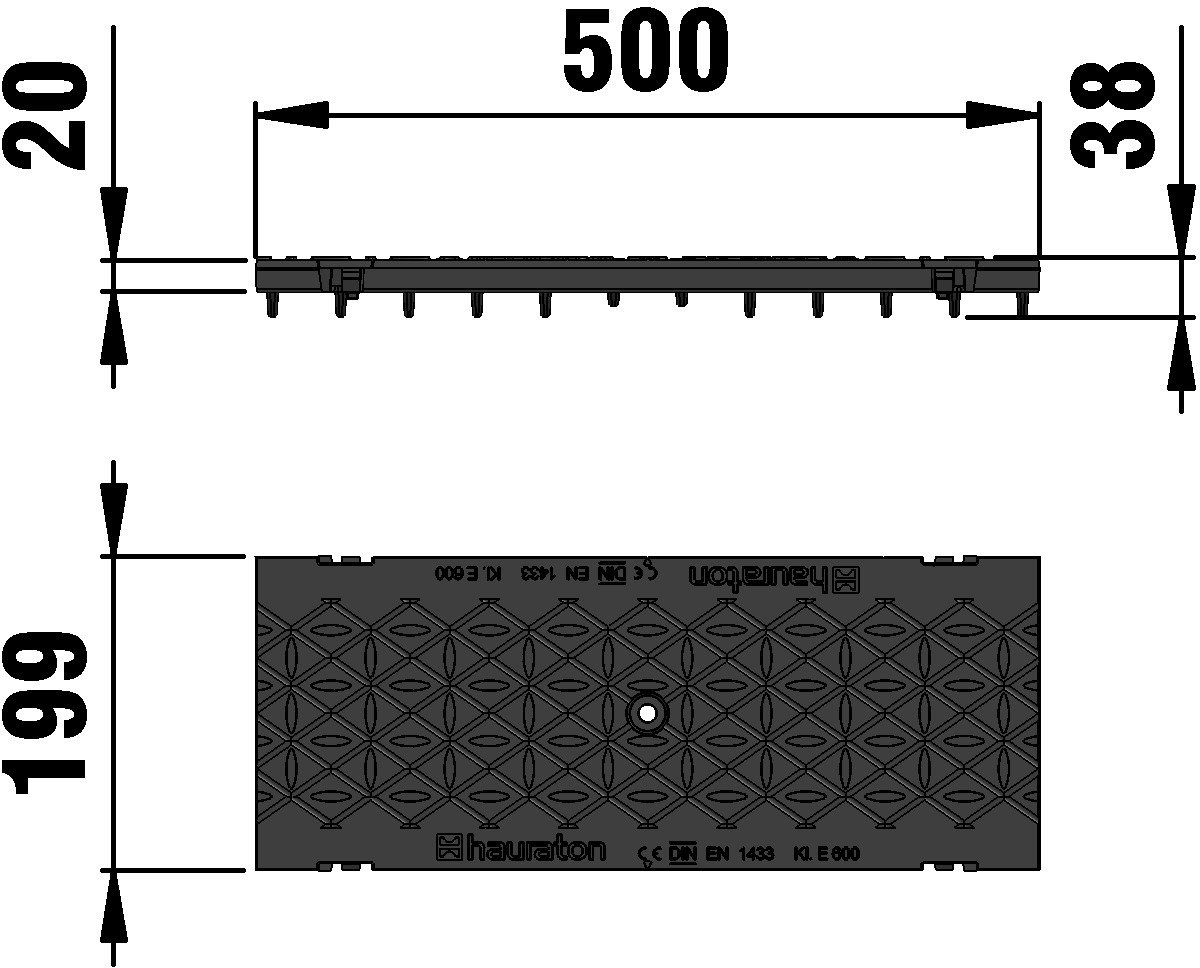

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32059
Length
500 mm
Width
199 mm
Height
38 mm
Einlegetiefe
20 mm
Weight
7.00 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
150
Inlet opening
0
Fixing type
SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL, black, cl. E 600, MEDIA CHANNEL FASERFIX KS 150, 0.5 m
Product description
MEDIA CHANNEL FASERFIX KS 150 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, 4-fold locking, load class A 15 - E 600 according to EN 1433, CE compliant, installation length 500 mm, item no. 32059
Packaging unit
154
Declaration of Performance
