Article No. 32045
SERVICE CHANNELS FASERFIX KS 300 made of fibre-reinforced concrete with 20 mm angle housing, class C 250
Ductile iron grating with opening for cables, KTL-coated, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

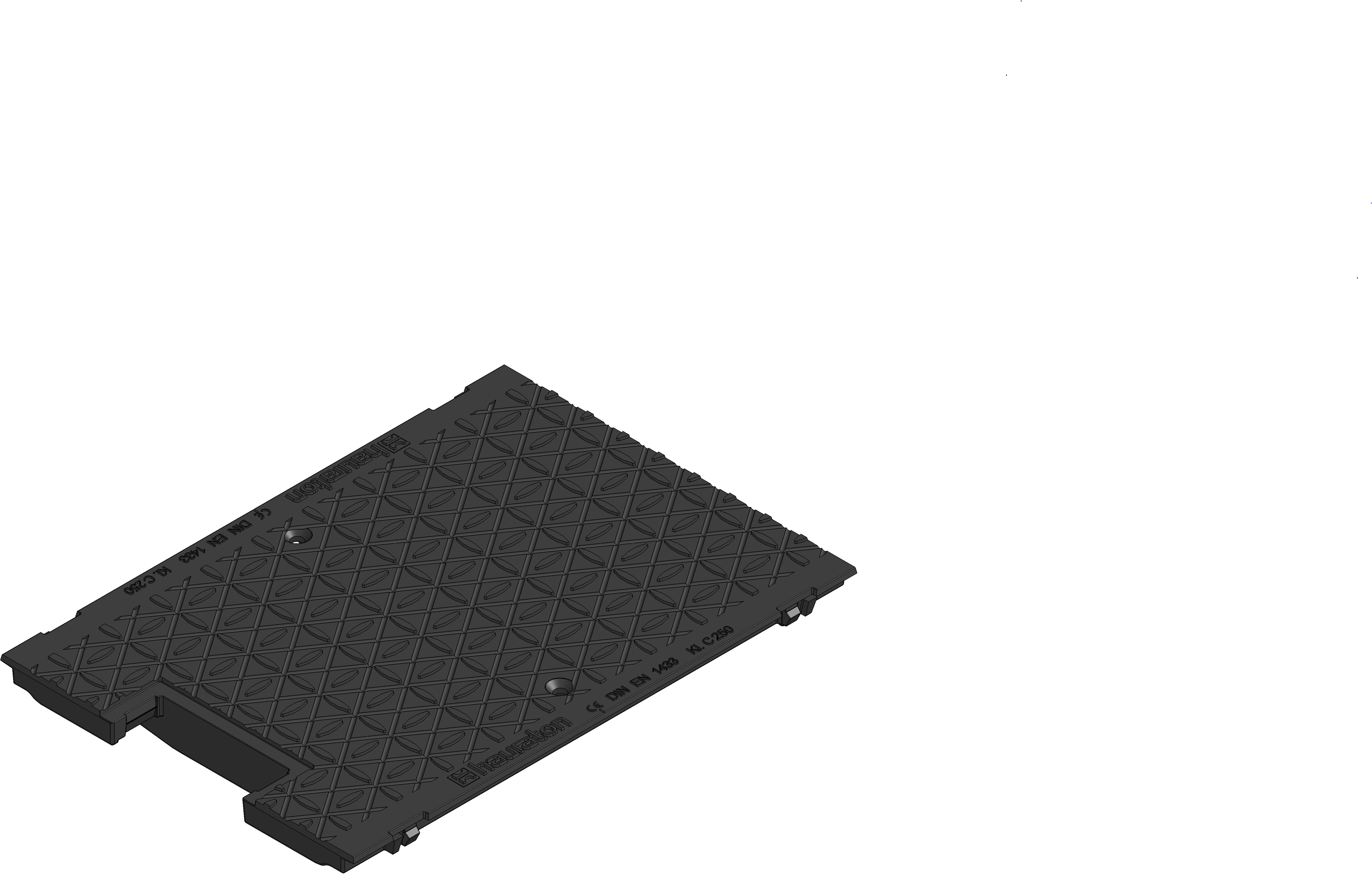

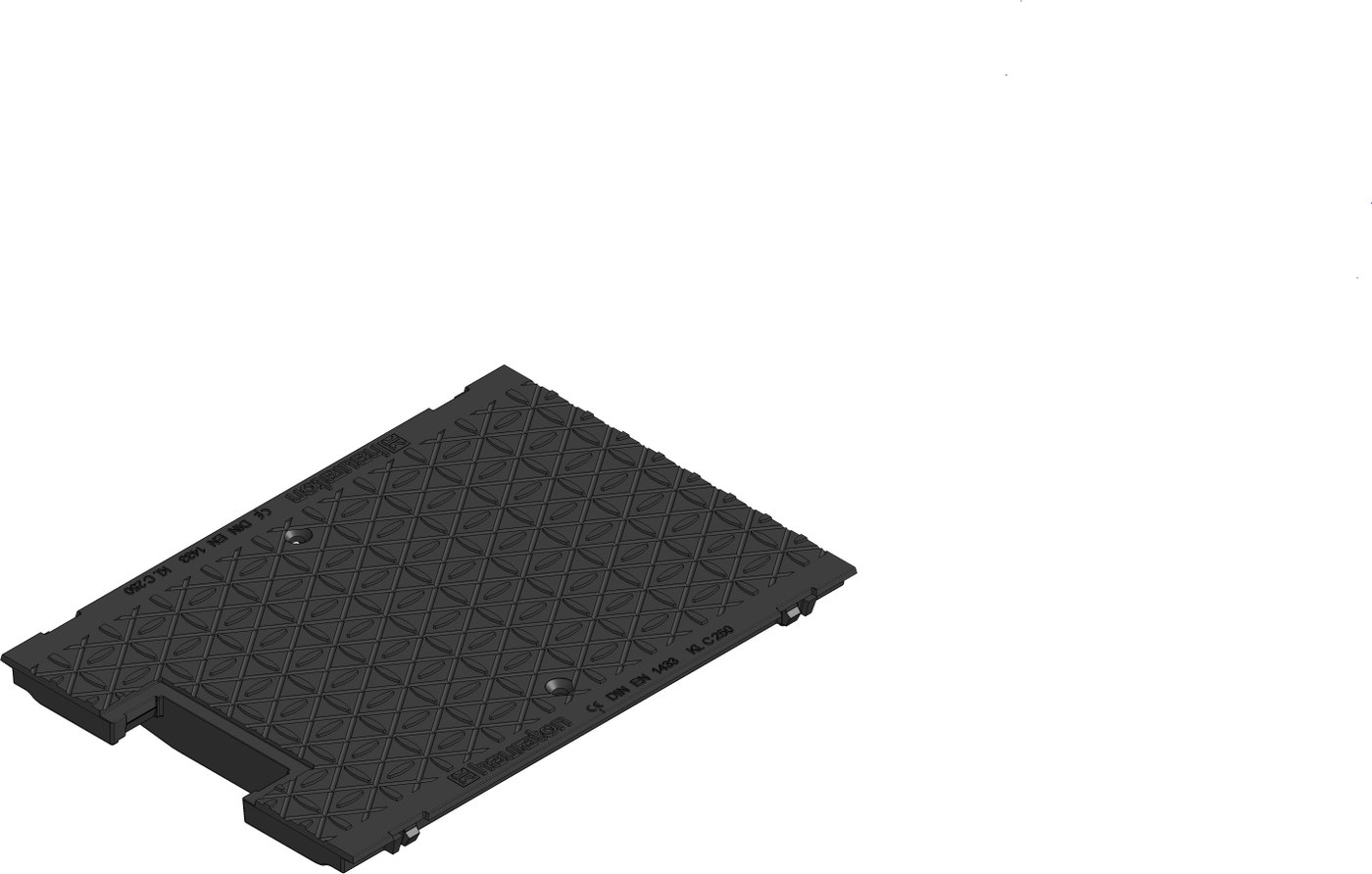

Product image

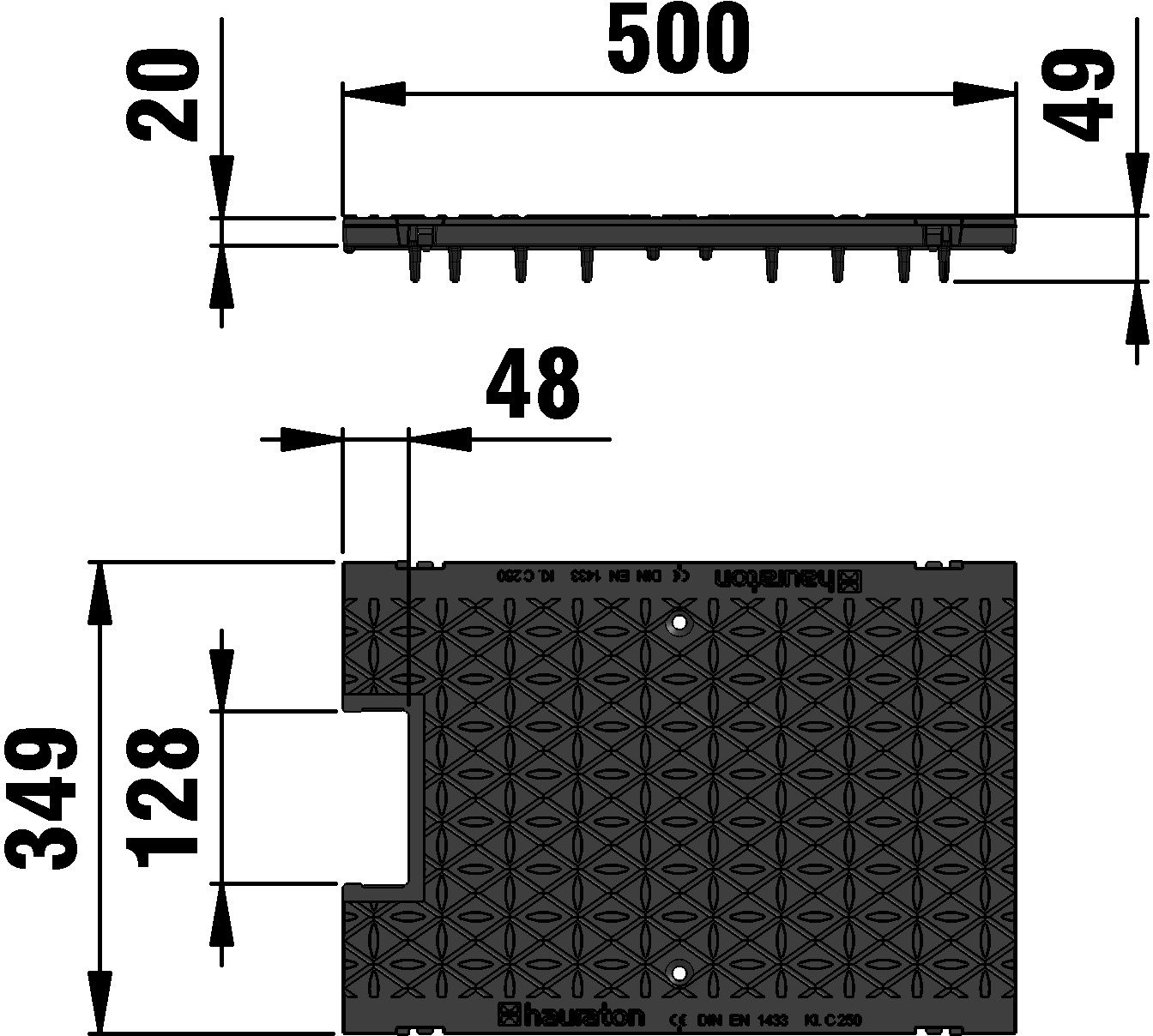

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32045
Length
500 mm
Width
349 mm
Height
49 mm
Einlegetiefe
20 mm
Weight
14.10 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
300
Inlet opening
0
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, with opening for cables, KTL, black, cl. C 250, MEDIA CHANNEL FASERFIX KS 300, 0.5 m
Product description
MEDIA CHANNEL FASERFIX KS 300 - Ductile iron grating closed, with opening for cables, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32045
Packaging unit
80
Declaration of Performance
