Article No. 32348
SERVICE CHANNELS FASERFIX SUPER 200 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron grating, closed, KTL-coated, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

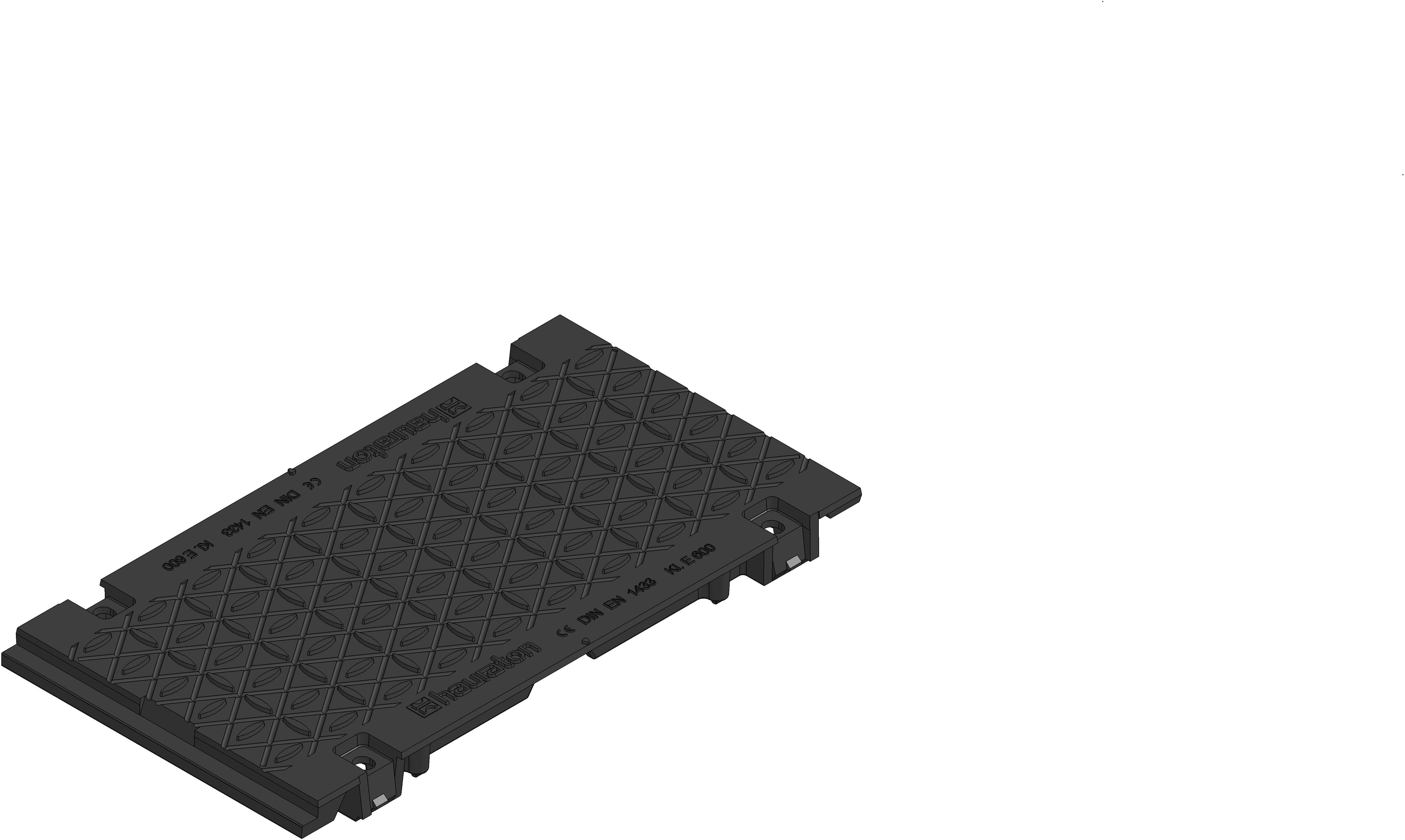

Product image

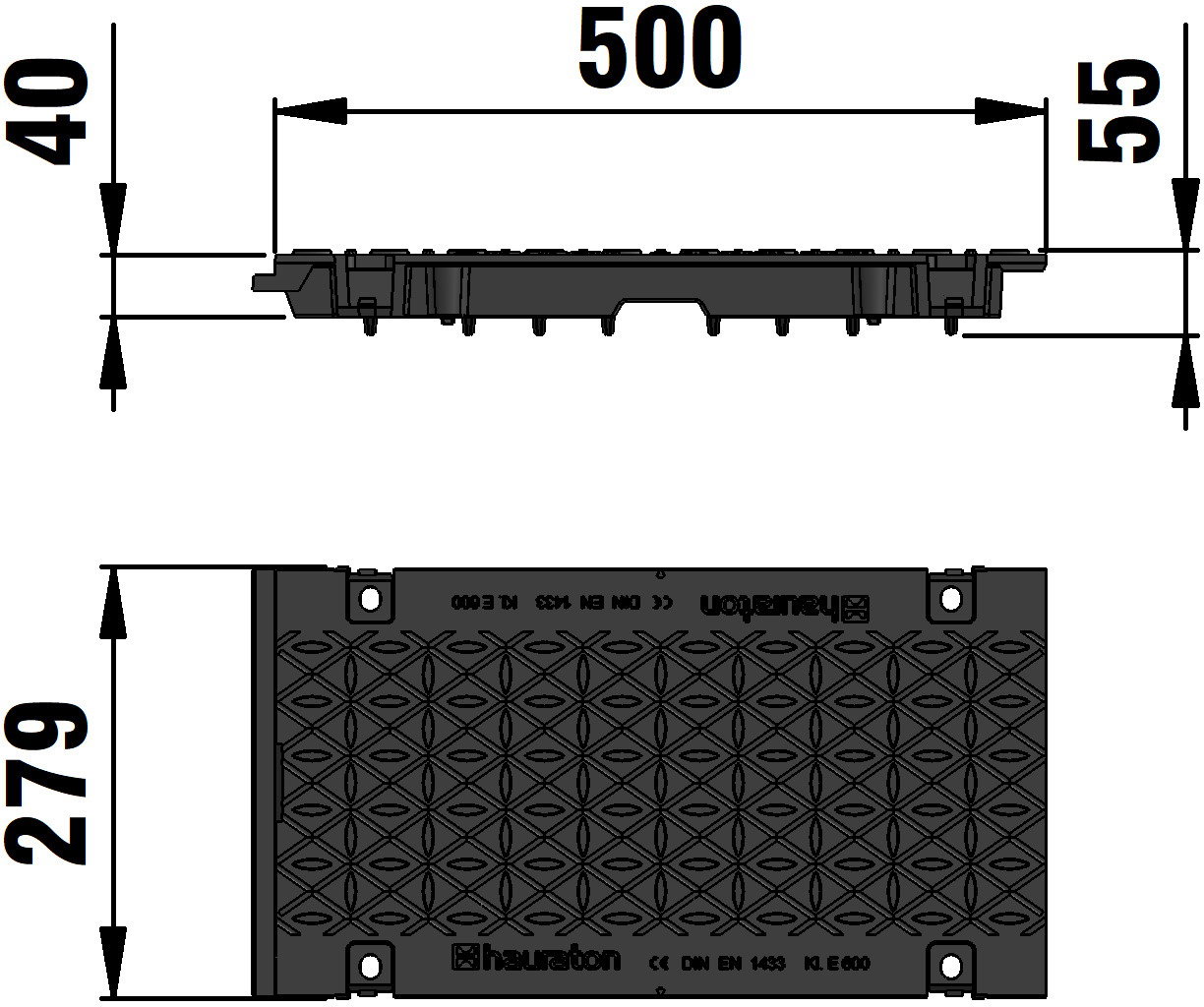

Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32348
Length
500 mm
Width
279 mm
Height
55 mm
Einlegetiefe
40 mm
Weight
13.40 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0
Fixing type
Anti-vandal locking catch, SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL-coated, cl. E 600, MEDIA CHANNEL FASERFIX SUPER 200, 0.5 m
Product description
MEDIA CHANNEL FASERFIX SUPER 200 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32348
Packaging unit
84
Declaration of Performance
