Article No. 32102
SERVICE CHANNELS FASERFIX SUPER 500 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron grating, closed, black, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

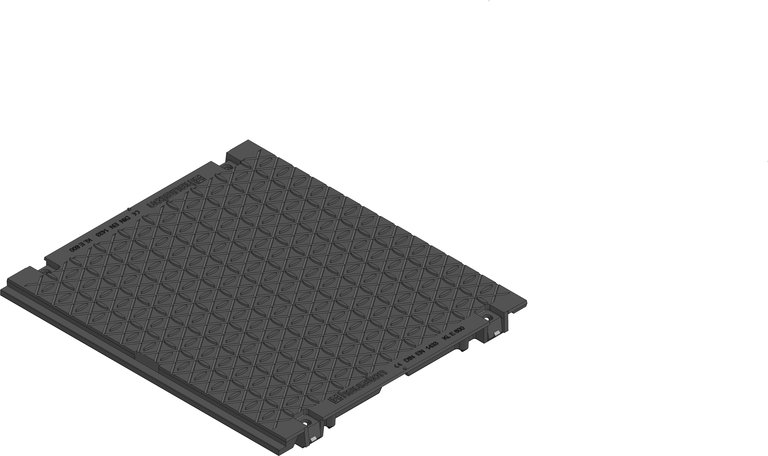

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32102
Length
500 mm
Width
579 mm
Height
76 mm
Einlegetiefe
40 mm
Weight
42.00 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
500
Inlet opening
0
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, black, cl. E 600, MEDIA CHANNEL FASERFIX SUPER 500, 0.5 m
Product description
MEDIA CHANNEL FASERFIX SUPER 500 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32102
Packaging unit
24
Declaration of Performance
