Article No. 32090

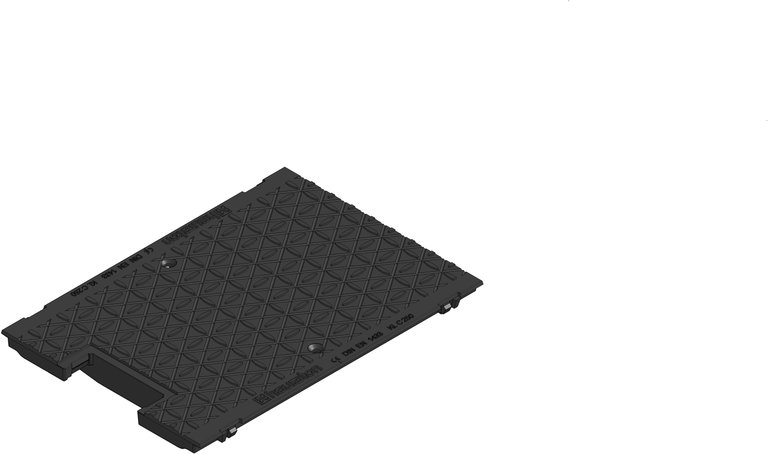

SERVICE CHANNEL RECYFIX PRO 300 made of polypropylene with 20 mm integrated polypropylene angle housing, class C 250
Ductile iron solid cover with opening for cables, (SW 128/49 mm), black, KTL-coated, locked, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical drawing
Drawing
Drawing (CAD)
Product image
Data Sheet
Technical information and metrics
Article No.
32090
Length
500 mm
Width
349 mm
Height
46 mm
Weight
14.10 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
0.0 cm²/m
Nominal size
300
Inlet opening
0
Fixing type
Loose blatant, Locking handle
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating with opening for cables, KTL ,black, cl. C 250, SERVICE CHANNEL RECYFIX PRO 300, 0,5 m
Product description
SERVICE CHANNEL RECYFIX PRO 300 - Ductile iron grating with opening for cables, KTL-coated, loading capacity from A 15 up to C 250 according to EN 1433, CE-conform, with locking option, L: 500 mm, Item No. 32090
Packaging unit
80
Declaration of Performance
