Article No. 10804
SPORTFIX channels with track boundaries
Type 010 with turf edge, straight, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

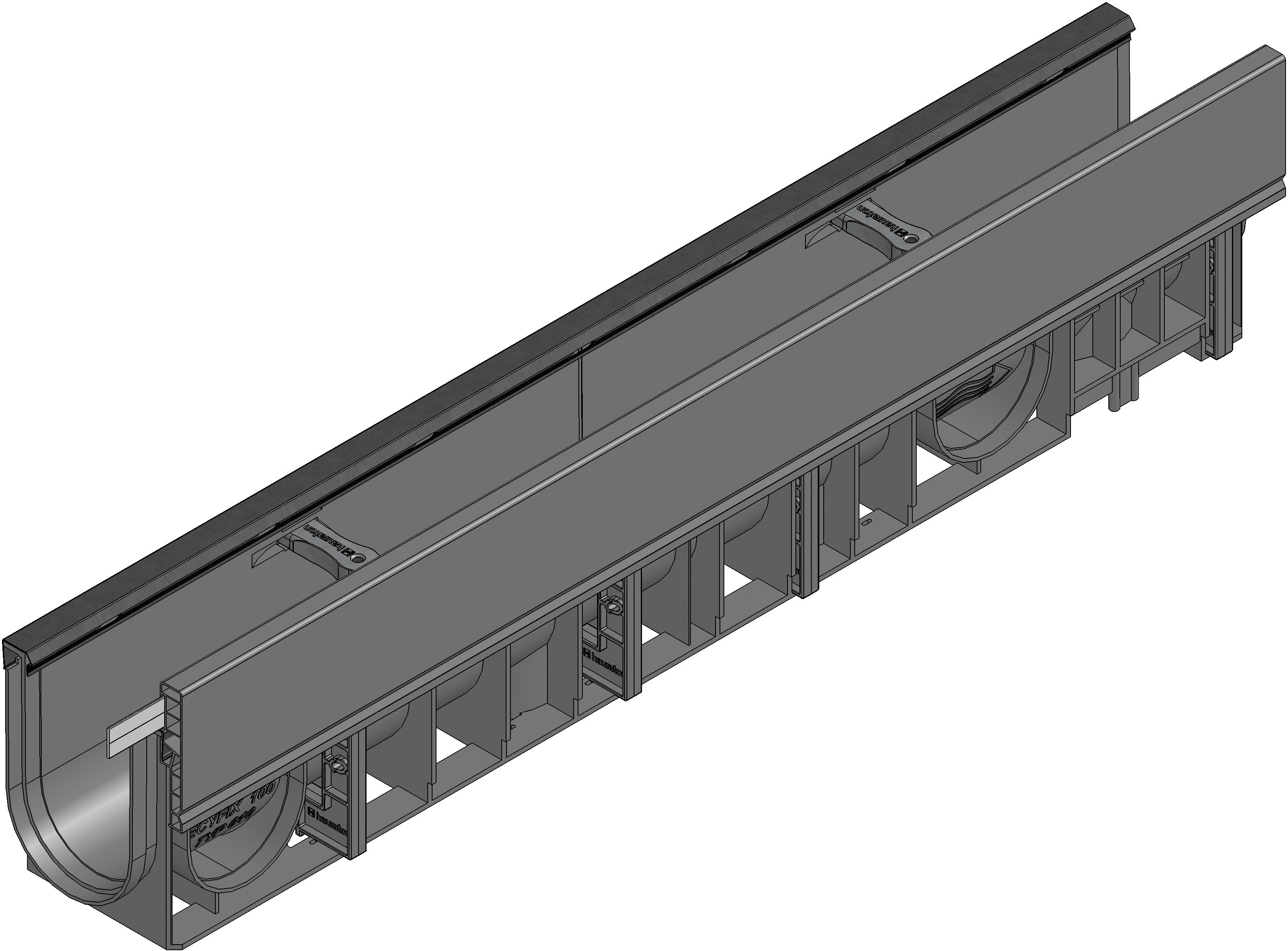

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10804
Length
1000 mm
Width
167 mm
Height
220 mm
Weight
3.69 kg
Material
KTL coated steel, recycled polypropylene, RECYFIX Material (recycled PA)
Height of angle housing
-
Nominal size
100
Internal channel cross-section
-
Fall
-
Fixing type
Loose blatant
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
KTL coated steel
Regulations
EN 1433 + IAKS
Sales text
SPORTFIX 100 Channel body type 010 with edge frames made of KTL-coated steel and one-sided turf edge, straight, 1 m
Product description
SPORTFIX 100 Type 010 - Channel body, straight, made of recycled polyethylene, with edge frames made of KTL-coated steel, for easy installation of running track surface, with one-sided turf edge, with vertical connection possibility DN/OD 110, according to the requirements of World Athletics. The stability of the channel base of alternative products must be demonstrated to the client before installation. LxWxH 1000x167x220 mm, item no. 10804
Packaging unit
50
Tender Texts
Installation example
running track / playing field class A 15,
